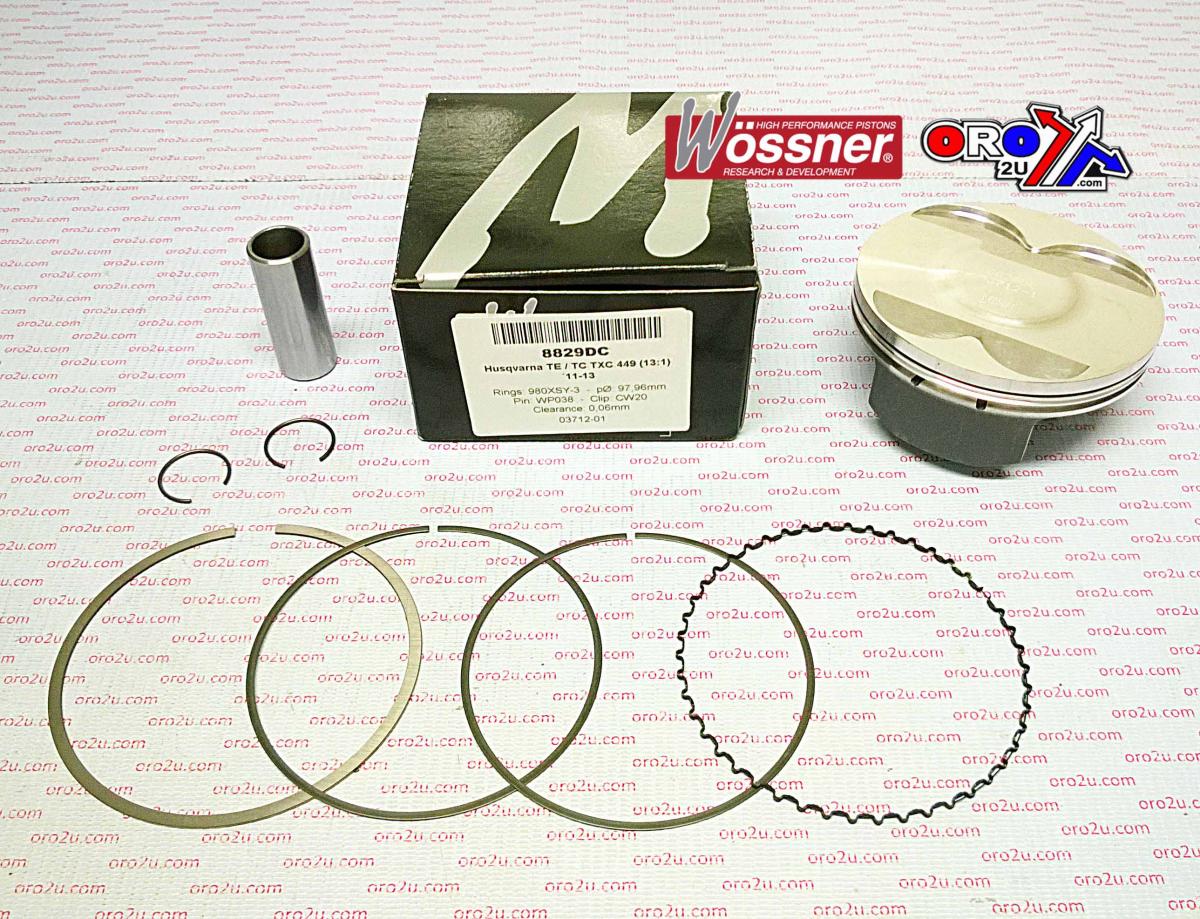

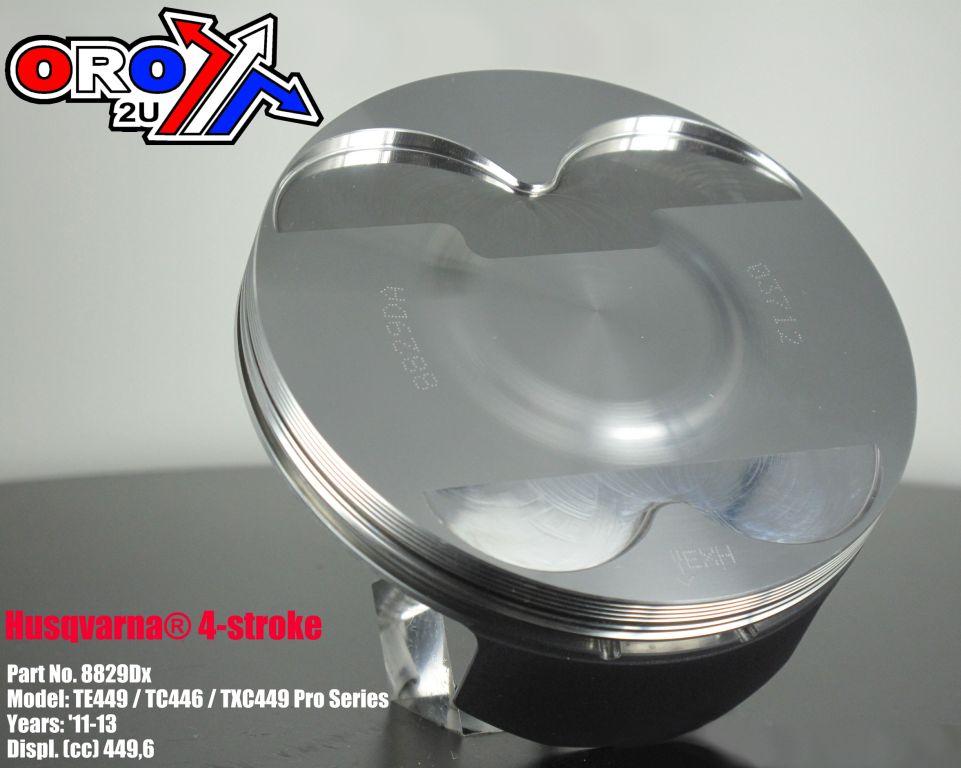

PISTON KIT11-13 TE TC449 98.00, HUSQVARNA WOSSNER 8829DB
Wossner forged piston kit 8829DB is a +0.01mm oversized Pro Series piston with a 98.01mm bore (measured at 97.95mm). This high-performance piston provides enhanced durability, heat management, and compression for demanding four-stroke engines. Features include forged construction for exceptional strength and performance, an elliptical design for uniform pressure distribution during heat expansion, and efficient heat transfer from the combustion chamber to the cylinder walls, which reduces localised stress and minimises the risk of piston collapse. Made in Germany. Specifications: Bore 98.01mm (Measured: 97.95mm), Display Volume 449 cm³, Stroke 59.60mm, Clearance 0.06mm, Compression Height 25.00mm, Wossner Compression Ratio 13.00:1, OEM Compression Ratio 12.00:1, Dome Volume -0.50 cm³, Part No. 56-W920.B.WO (Wossner 8829DB), Ring Set 980XSY, Lock P/N CW20, Pin P/N WP038.
- SKU
- 56-W920.B.WO
- Brand
- Wossner
- Availability
- Out of Stock
FULL DESCRIPTION
Wossner Pro Series Forged Piston Kit
Upgrade your motorcycle's performance and durability with this Wossner Pro Series forged piston kit. Engineered for demanding four-stroke engines, this high-quality piston is designed for optimal power and longevity.
Key Features:
- Forged Construction: Provides exceptional strength, rigidity, and performance under high stress.
- Elliptical Design: Ensures uniform pressure distribution and compensates for heat expansion, minimizing wear and preventing piston collapse.
- Efficient Heat Transfer: Facilitates effective heat dissipation from the combustion chamber to the cylinder walls for improved thermal management.
- German Engineering: Manufactured in Germany, guaranteeing precision and high standards of quality.
- Pro Series: Offers advanced features for high-performance applications.
Specifications:
- Bore: 98.01mm (Measured at 97.95mm)
- Stroke: 59.60mm
- Clearance: 0.06mm
- Compression Height: 25.00mm
- Wossner Compression Ratio: 13.00:1
- OEM Compression Ratio: 12.00:1
- Dome Volume: -0.50 cm³
- Includes Ring Set: 980XSY
- Includes Lock P/N: CW20
- Includes Pin P/N: WP038
