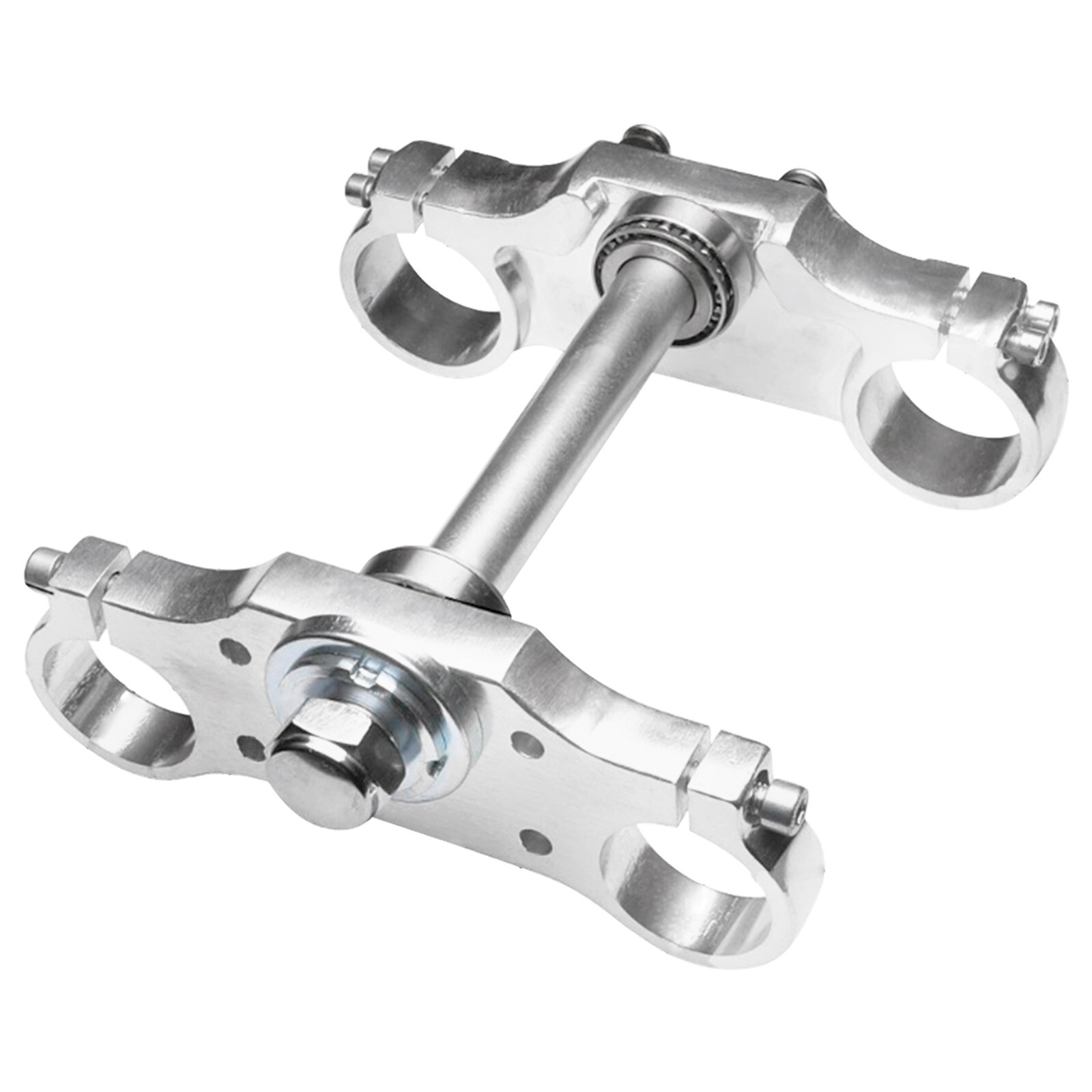

PIT BIKE TRIPLE CLAMP SET 45mm 48mm FORKS
Universal aluminium triple clamp set for upside-down (USD) front forks on pit and dirt bikes. Features a 45 mm upper clamp bore and a 48 mm lower clamp bore. Includes complete triple clamp set and aluminium construction. Specifications: Upper clamp bore diameter 45 mm, lower clamp bore diameter 48 mm, column (steering stem) width 22/23mm, bolt-to-bolt distance 156 mm, and bearing sizes (tapered roller) 320/22 and 320/23. Does not include risers. Spacing is roughly 35 mm between holes and accepts up to M8 bolts. Manufacturer: Factory Image Racing.
- SKU
- 16-3532
- Brand
- Factory Image Racing
- Availability
- Out of Stock
FULL DESCRIPTION
Pit Bike Triple Clamp Set 45mm 48mm Forks
This universal aluminium triple clamp set is designed for upside-down (USD) front forks on pit and dirt bikes. It provides secure fork clamping with 45 mm (upper) and 48 mm (lower) bores, making it suitable for CRF50-style and similar pit bike front ends.
Key Features:
- Complete triple clamp set
- Engineered for upside-down (USD) front forks
- Durable aluminium construction
- Upper clamp bore diameter: 45 mm
- Lower clamp bore diameter: 48 mm
- Column (steering stem) width: 22/23mm
- Bolt-to-bolt distance: 156 mm
- Compatible with tapered roller bearings: 320/22 and 320/23
- Spacing between holes is approximately 35mm
- Accepts up to M8 bolts
Please Note: This triple clamp set does not include risers.
