REAR AXLE UNIVERSAL DIY DRIFT KIT FOR GO KART BUGGY TRIKE

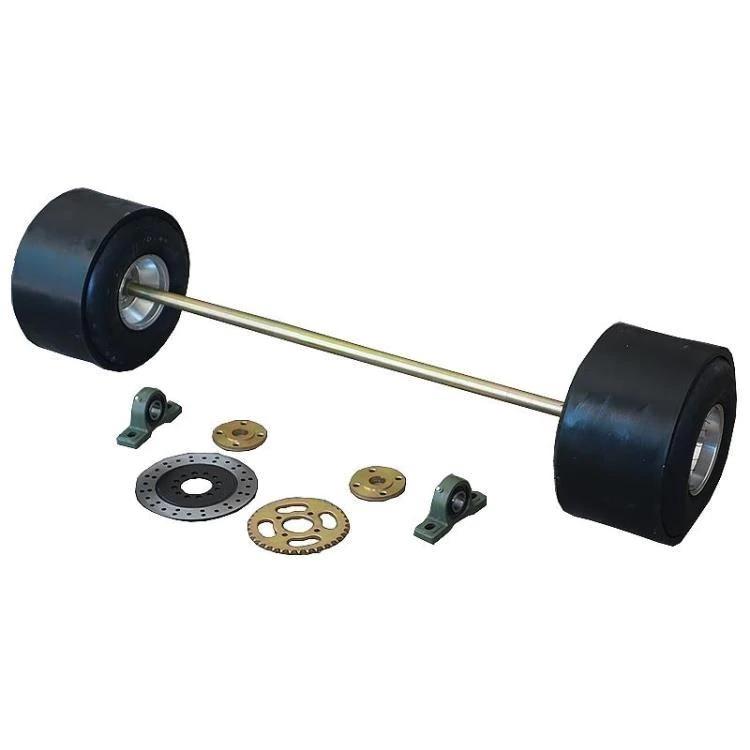

Universal Rear Axle Drift Kit for Go-Kart, Buggy, and Trike

This comprehensive rear axle kit is designed as a universal solution for off-road vehicles such as go-karts, buggies, and trikes. It provides a robust platform for drivetrain and brake system integration, enabling custom build projects.

Key Features:

• 1000mm total axle length with splined ends for secure hub attachment.
• Includes two 3-hole wheel hubs with internal splines that precisely match the axle.
• Equipped with two P205 carrier bearings, featuring grease nipples for easy lubrication and maintenance.
• Comes with two universal sprocket and disc hubs designed for welding to the axle shaft, allowing for custom drivetrain and brake setups.
• Includes one sprocket and one brake disc for essential stopping and power transfer.
• Two nylock nuts are provided for secure fastening.
• Both ends of the axle feature a hole for a split pin, ensuring added security.

Specifications:

Axle Shaft:

• Length: 1000mm
• Splined at both ends
• Includes a hole for a split pin at each end
• Includes 2 x nylock nuts

Wheel Hubs (2 x 3-hole):

• Hole size: 6.5mm
• Pitch Circle Diameter (PCD): approximately 57.74mm
• Internal splines
• Threaded mounting holes
• 6 bolts included

Carrier Bearings (2 x P205):

• Inner diameter: 24.5mm
• Mounting hole spacing: 100mm (adjustable by 10-15mm)
• Includes grease nipple

Universal Sprocket and Disc Hubs (2 included):

• Inner diameter: 26mm
• Outer diameter: 85mm
• Hole diameter: 8mm
• Number of holes: 4
• PCD: 68mm
• Designed for welding to the axle shaft

Sprocket:

• Tooth count: 37
• Hole size: 8.5mm
• Inner diameter: 48mm

Brake Disc:

• Outer diameter: approximately 160mm
• Hole size: 8.5mm
• Inner diameter: 48mm
• Number of holes: 4
• PCD: 68mm
