RECTIFIER REGULATOR 07-10 POLARIS RANGER RZR SPORTSMAN 500 700 800 EFI 4011569 4011925
12V Rectifier / Regulator 35A Trifasico to DC SCR. Features meet or exceed OEM quality, direct OEM replacement with correct mounting locations, designed to handle increased power loads, 100% factory tested, and comes with a satisfaction guarantee. Specifications include 12V, 35A, 50mm height, 107mm width, 112mm length, and 82mm mounting hole center-to-center pitch. No sensor included. Dimensions are 111mm L x 111mm W x 52.5mm H. Plug #1 has (3) yellow wires, 7.25 inches OAL. Plug #2 has (2) red wires and (2) black wires, 5 inches OAL. Includes 1 yellow w/red wire, female bullet connector, 7 inches OAL. Cross-reference OEM part numbers: 4011569, 4011925, 4012384, APO6028, 230-22100, ESP2532. Part Number: 44-6091.AH. Manufacturer: Arrowhead Electrical.
- SKU
- 44-6091.AH
- Brand
- Arrowhead Electrical
- Availability
- In Stock (1)
FULL DESCRIPTION
12V Rectifier Regulator for Polaris ATVs and UTVs
This 12-volt rectifier regulator is a high-quality replacement part designed to ensure optimal voltage regulation and reliable electrical performance for various Polaris ATV and UTV models. It is engineered to meet or exceed original equipment manufacturer (OEM) standards, providing a dependable solution for your vehicle's electrical system. The unit is built to handle up to 35A of current and offers a straightforward installation process as a direct replacement.
Key Features:
- Meets or exceeds OEM quality for superior performance and durability.
- Designed as a direct OEM replacement with accurate mounting locations for easy installation.
- Capable of handling increased power loads, enhancing overall reliability.
- Each unit undergoes 100% factory testing to ensure full functionality upon arrival.
- Electrical components are non-returnable.
Specifications:
- Voltage: 12V
- Maximum Current: 35A
- Input Type: Trifasico
- Output Type: DC
- Technology: SCR (Silicon Controlled Rectifier)
- Dimensions: 50mm Height, 107mm Width, 112mm Length
- Mounting Hole Center-to-Center Pitch: 82mm
- No sensor is included with this unit.
Cross-Reference OEM Part Numbers:
- 4011569
- 4011925
- 4012384

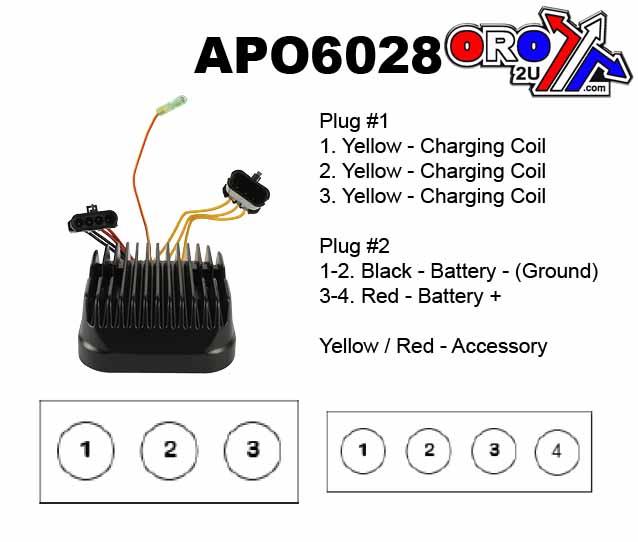

Wiring Configuration Notes:

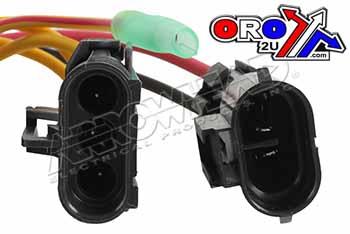

- Plug #1: Features three yellow wires with a length of 7.25 inches overall.
- Plug #2: Features two red wires and two black wires with a length of 5 inches overall.
- Additional wire: One yellow wire with a red stripe, female bullet connector, 7 inches overall length.
