REGULATOR VOLTAGE SH300 07-10, 31600-KTW-901 AHA6059, DZE 2410, SCOOTER ROAD
HONDA SH300 2007 - 2010 Mosfet regulator rectifier 12V 50A. Technical specifications: Voltage 12V, Current 50A, Input type TRIFASICO, Technology MOSFET, Output type CC, Height 28mm, Width 80mm, Length 90mm, Pitch 70mm, With sensor NO. Direct OEM replacement, tested for reliability, designed to handle increased power loads. Please check image and connection plugs before ordering. No returns on electrical parts. Part No. 44-3811. Cross reference numbers: 31600-KTW-901, FH008, AHA6059, DZE 2410, 2414. MOSFET technology offers advantages over SCR technology for higher energy demands from modern electronics, fuel injection, and lighting.
- SKU
- 44-3811.AH
- Brand
- Arrowhead Electrical
- Availability
- In Stock (1)
FULL DESCRIPTION
Motorcycle Voltage Regulator Rectifier
This MOSFET voltage regulator rectifier is a high-quality replacement part designed to meet or exceed OEM specifications. It directly replaces your original unit and is factory tested for 100% reliability. This advanced technology utilizes MOSFET transistors for superior performance compared to older SCR designs, making it ideal for modern vehicles with increasing electrical demands.
The regulator converts the three-phase AC output from your motorcycle's generator into a stable 12V DC current to charge the battery and power your electrical systems. It is engineered to handle increased power loads and is built for durability.
Key Features:
- MOSFET Technology for enhanced performance and efficiency.
- 12V DC Output Voltage.
- 50A Current Rating.
- Three-Phase Input Type.
- Designed as a direct OEM replacement.
- Handles increased power loads.
- Factory tested for reliability.
- Dimensions: Height 28mm, Width 80mm, Length 90mm.
- Mounting Pitch: 70mm.

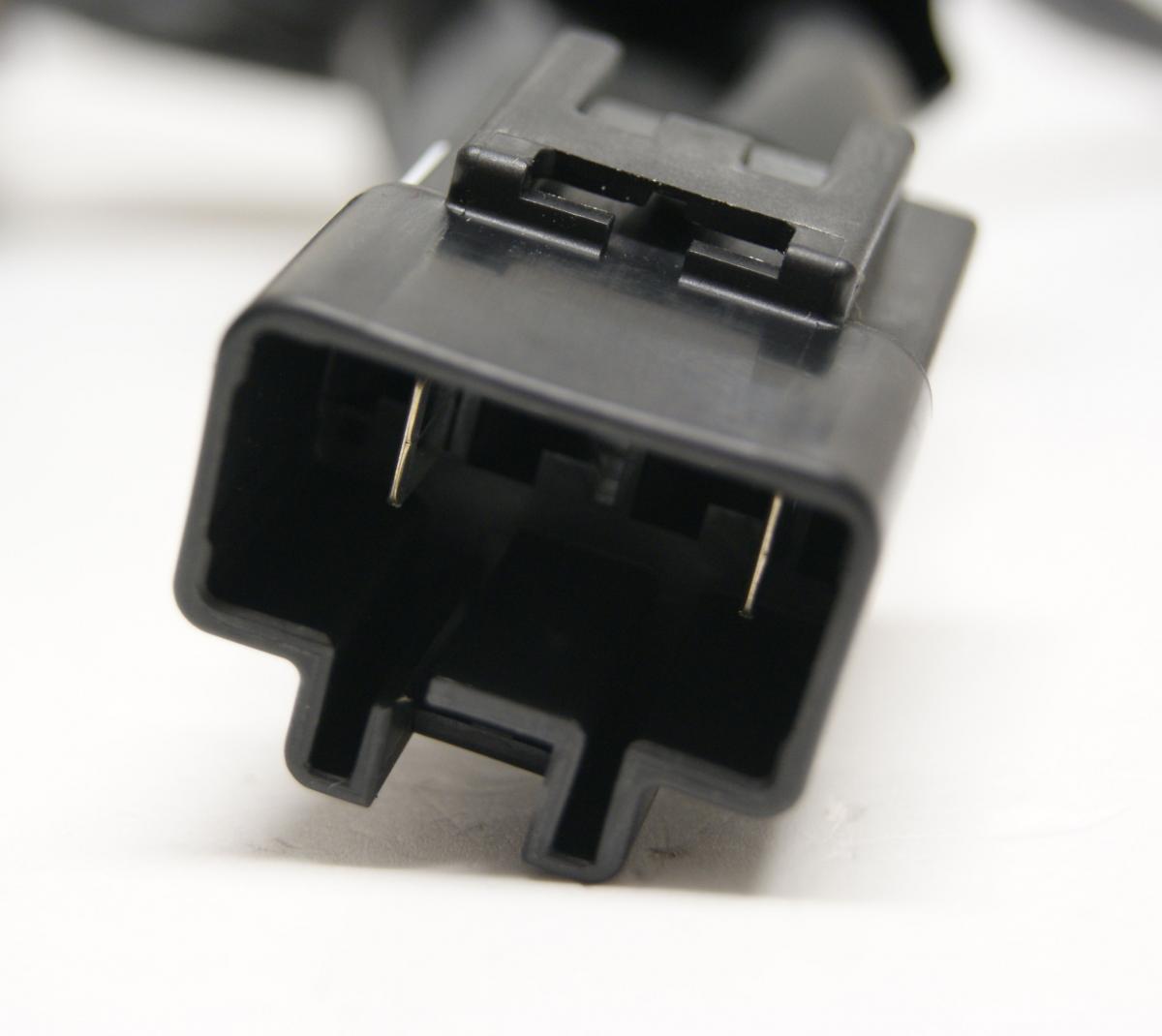

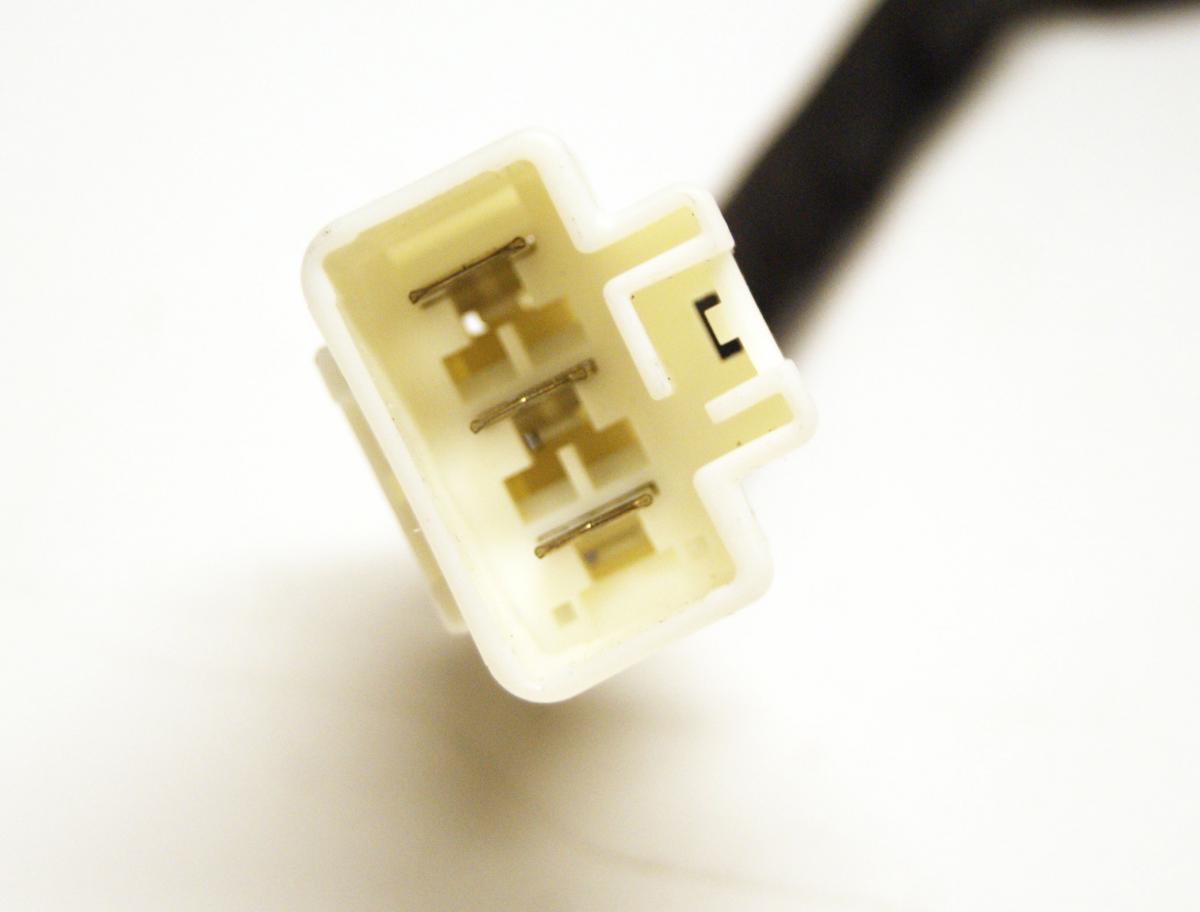

Important Note: Please verify the image and connection plugs match your existing unit before ordering. Electrical parts are not eligible for return.
