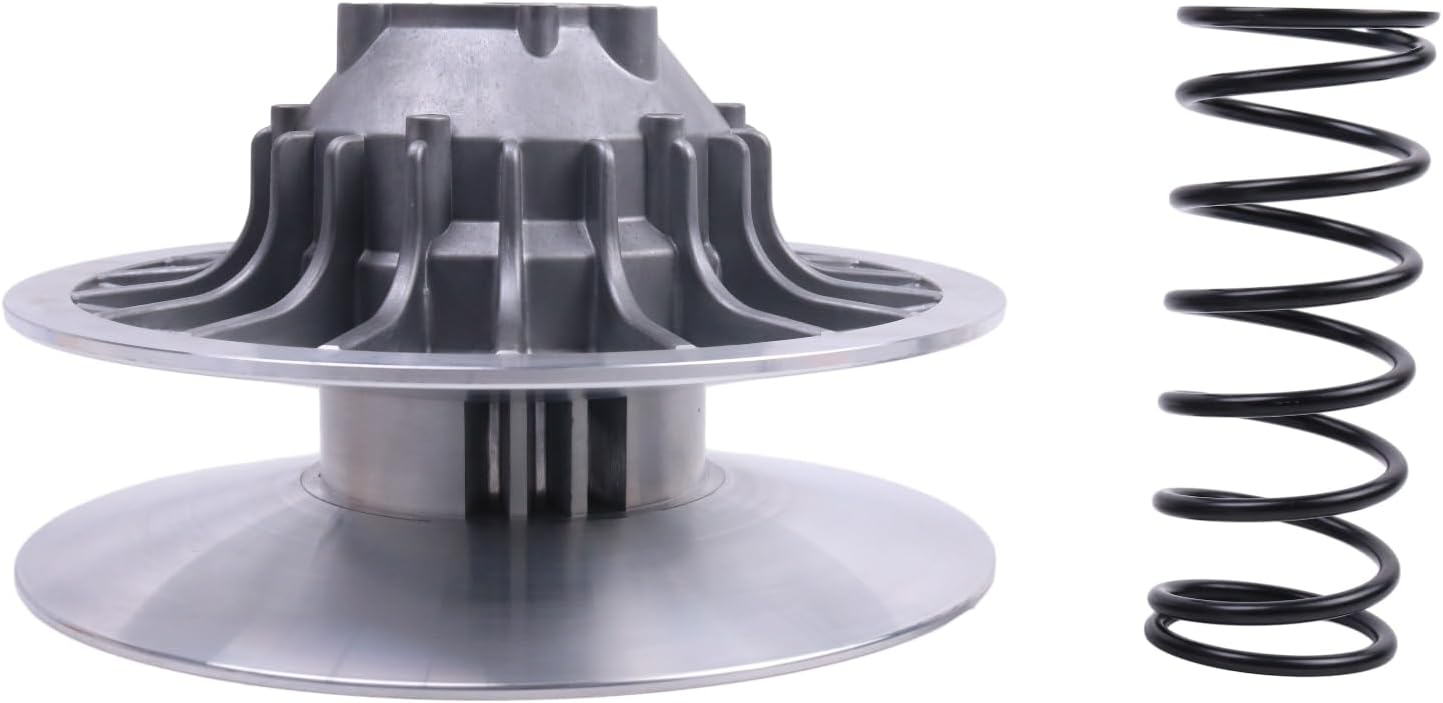

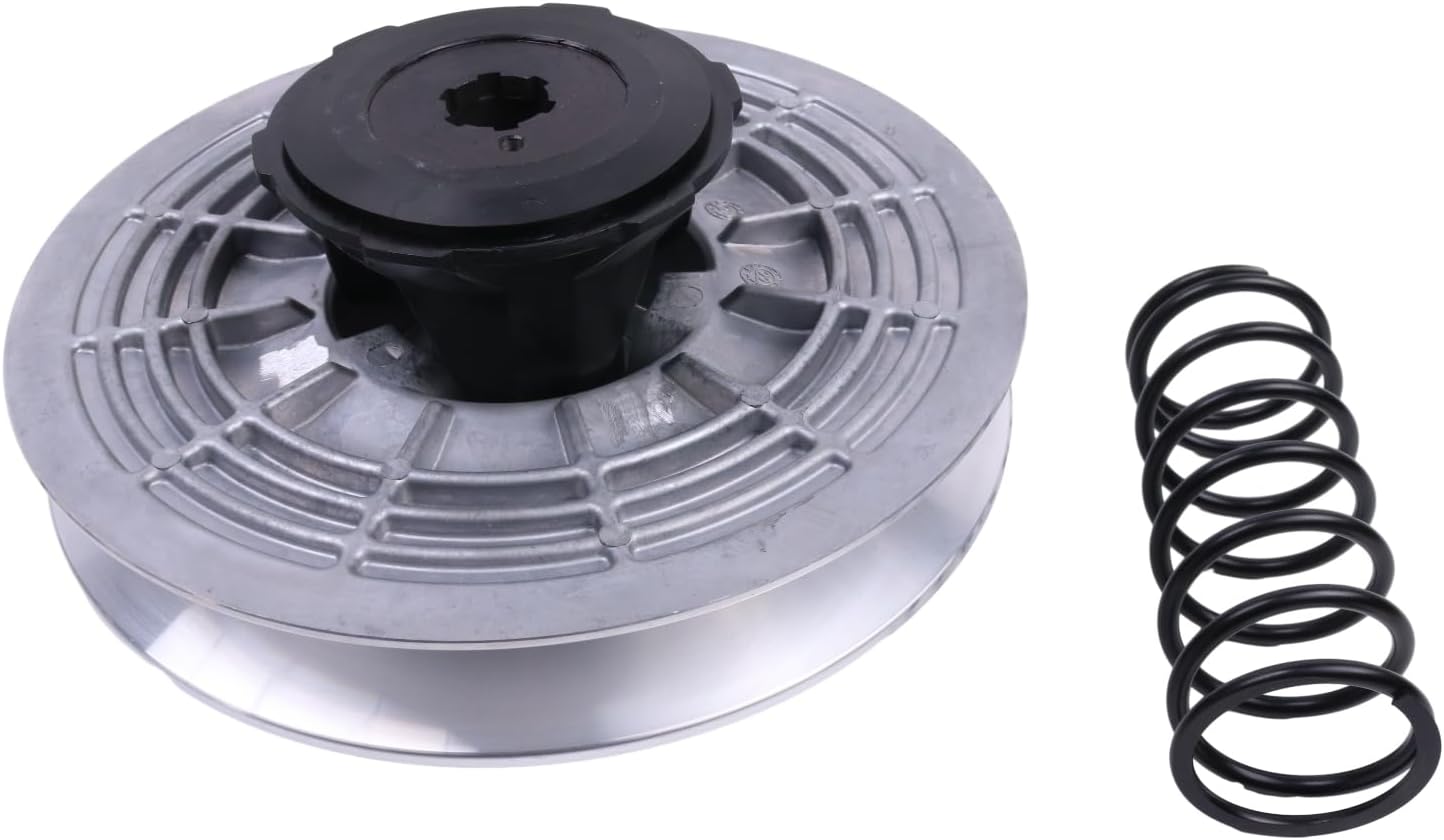

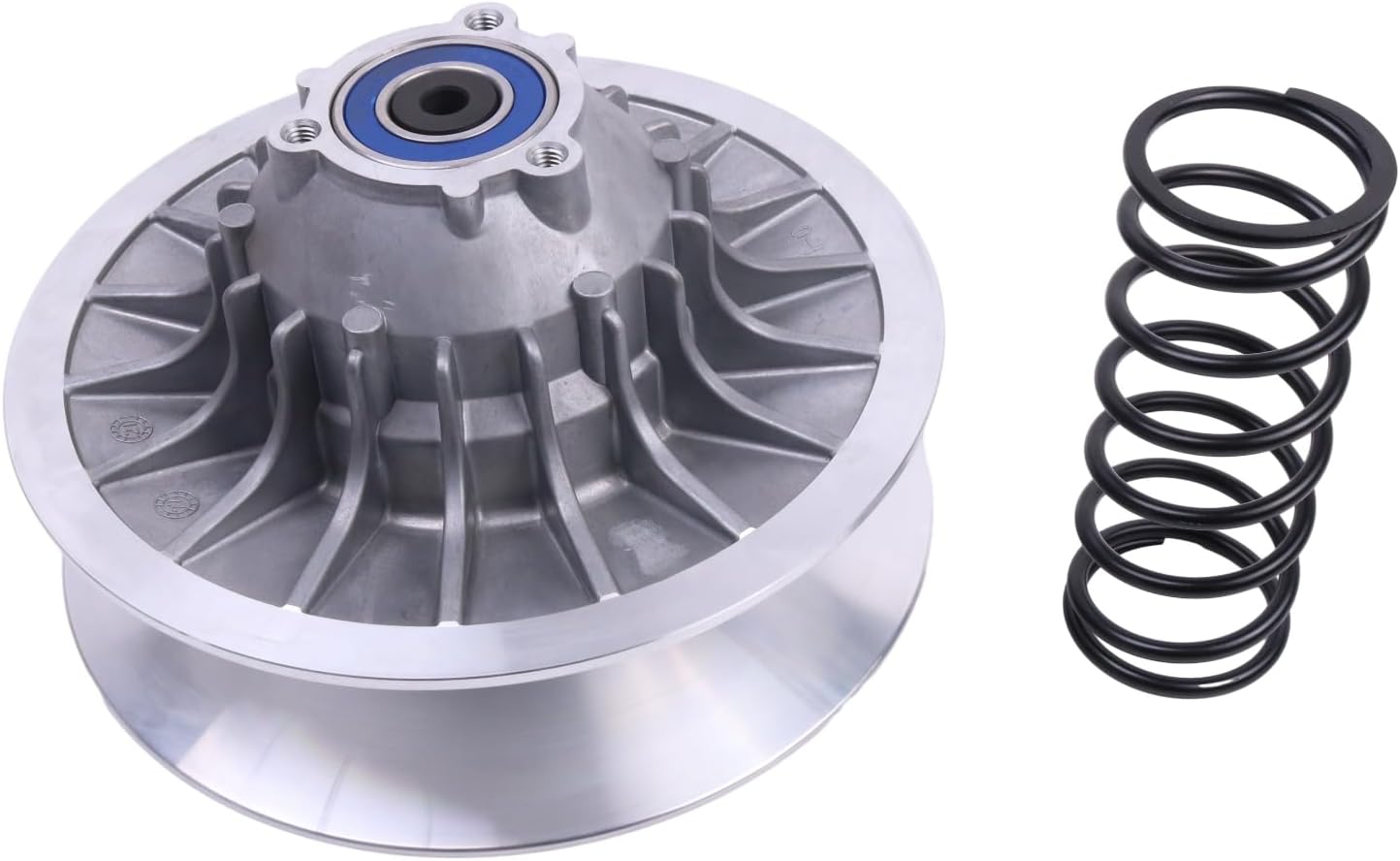

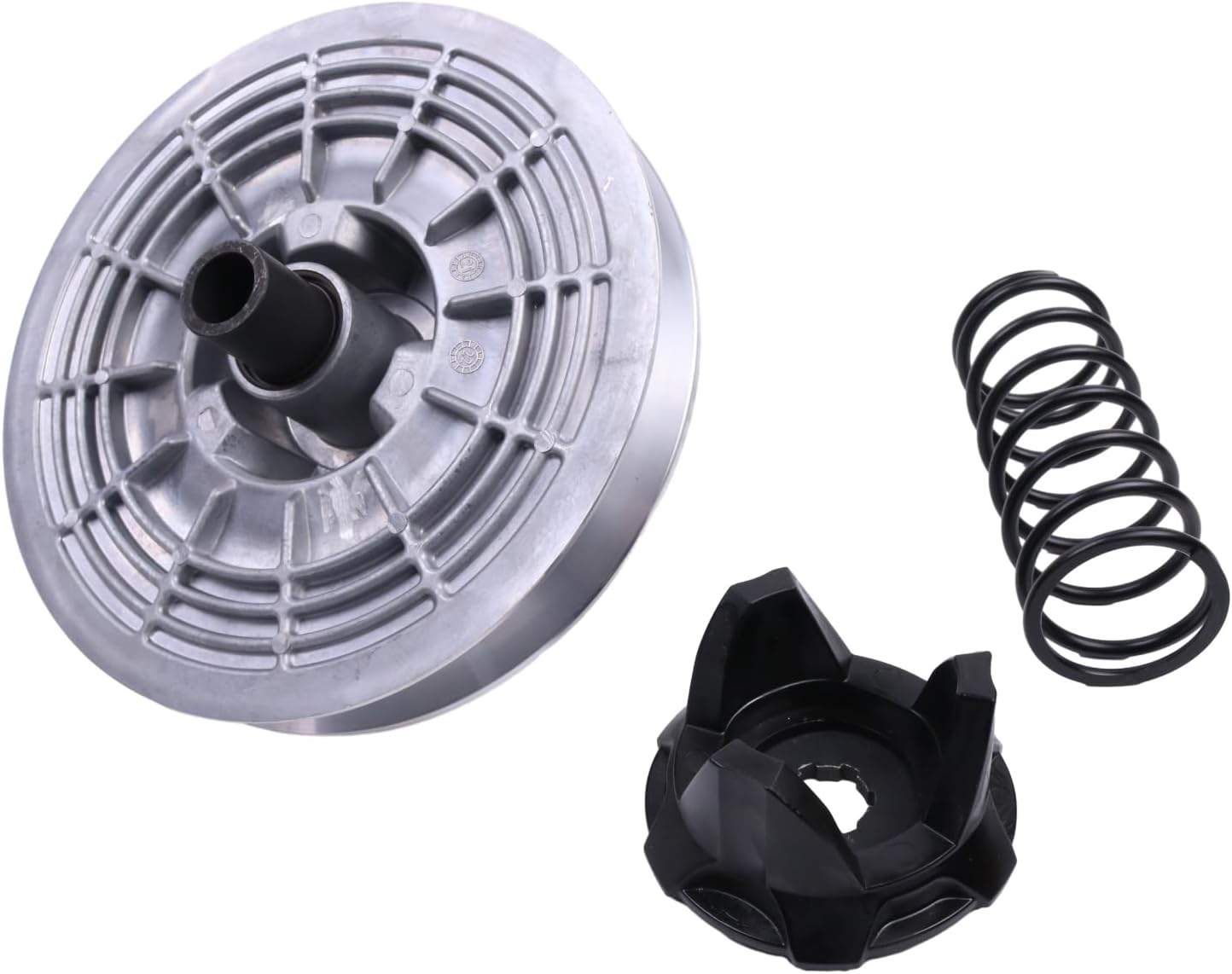

SECONDARY DRIVE CLUTCH 03-22 CAN-AM 330 400 450 500 650 OUTLANDER BOMBARDIER
This secondary driven clutch assembly is designed for CVT models and corresponds to original secondary clutch components. It is supplied with the correct torque-sensing cam (helix) and driven-pulley compression spring. Features include a complete secondary driven clutch assembled with cam (helix) and compression spring, direct-fit geometry for correct belt ratio control and backshift characteristics, compatibility with all listed model packages, and readiness for installation using standard workshop procedures and OEM torque specifications. Specifications include: Type: CVT secondary (driven) pulley assembly. Cam/helix: OEM 420280250. Compression spring (driven pulley): OEM 420238340. Major secondary clutch halves referenced: Outer half assembly 420280176; Inner half assembly 420280235. Construction: Two-sheave torque-sensing design with cam plate and compression spring. Cross-Reference OEM Part Numbers: 420280176, 420280235, 420280250, 420238340, 420280173, 420280178, 420248233. Weight: 3715 grams. Manufacturer: Dirt Racing.
- SKU
- 04-7815.DR
- Brand
- Dirt Racing
- Availability
- In Stock (7)
FULL DESCRIPTION
Dirt Racing Secondary Driven Clutch Assembly for Can-Am/Bombardier CVT
This secondary driven clutch assembly from Dirt Racing is a direct replacement for your Can-Am/Bombardier CVT system. It is designed to meet the specifications of original equipment, ensuring proper fit and function. The assembly includes the essential torque-sensing cam (helix) and a driven-pulley compression spring, providing a complete solution for your clutch needs.
Key Features:
- Complete assembled secondary driven clutch for immediate installation.
- Includes the correct torque-sensing cam (helix) and driven-pulley compression spring.
- Maintains accurate belt ratio control and backshift characteristics due to its direct-fit geometry.
- Designed to be compatible with various model packages, including EFI, XT, MAX, L, and 6x6 configurations.
- Ready for installation using standard workshop procedures and OEM torque specifications.
Specifications:
- Type: CVT secondary (driven) pulley assembly
- Cam/Helix Part Number: 420280250
- Compression Spring Part Number: 420238340
- Outer Secondary Clutch Half Reference: 420280176
- Inner Secondary Clutch Half Reference: 420280235
- Design: Two-sheave torque-sensing with integrated cam plate and compression spring.
Cross-Reference OEM Part Numbers:
- Outer half assembly: 420280176
- Inner half assembly: 420280235
- Cam/helix: 420280250
- Compression spring, driven pulley: 420238340
- Superseded/alternative outer half assemblies: 420280173, 420280178
- Superseded/alternative inner half assembly: 420248233
