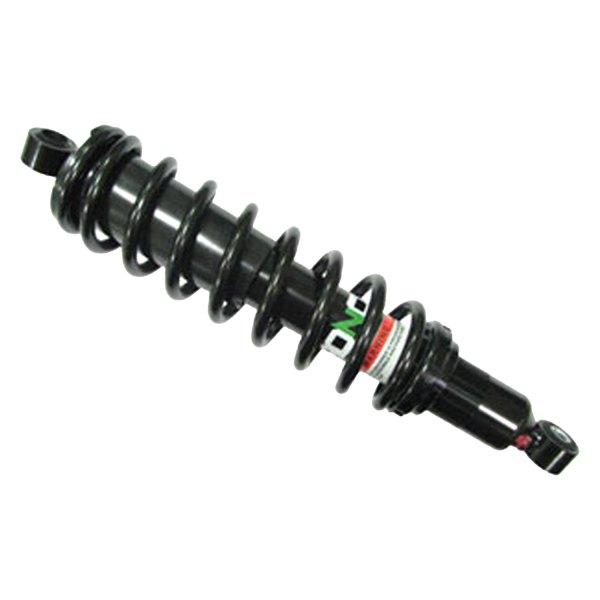

SHOCK BRONCO ATV REAR TRX400, AU-04252
Bronco gas shocks offer consistent long-term performance. Featuring 10% stiffer springs for improved ride and higher load capacity, these shocks are ideal for front-end use with a snow plow. The smooth black finish blends with OEM ATVs. This direct bolt-on replacement comes with a pre-installed spring, ready for mounting. Sold individually, it includes one shock, spring, and spring retainers. Specifications: Position Top Hole I.D. 16mm, Top Eyelet Width 20mm, Bottom Hole I.D. 10mm, Bottom Eyelet Width 21mm, Tube O.D. 38mm, Stroke 65mm, Spring O.D. 72mm, Spring Wire Diameter 8.5mm, Spring Rate 221 lbs/inch or 3.95 kg/mm, Center to Center 347mm (13 2/3 inches). Part No. 29-533. Bronco Ref: AU-04252. OEM Ref: 52400-HM7-003.
- SKU
- 29-533.EA
- Brand
- Bronco
- Availability
- In Stock (16)
FULL DESCRIPTION
Bronco Rear ATV Gas Shock Absorber
Upgrade your ATV's performance with the Bronco Rear Gas Shock Absorber. Designed for long-term, consistent damping performance, this shock offers a significant improvement over traditional oil-only damped shocks. The included 10% stiffer springs provide a more comfortable ride and increased load capacity, making it an excellent choice for demanding applications, including when installing a snow plow on the front.
Featuring a smooth black finish, this shock absorber seamlessly blends with any OEM ATV aesthetic. It's engineered as a direct bolt-on replacement, with the spring pre-installed for immediate mounting straight out of the box. This shock is sold individually and includes one shock absorber, its spring, and necessary spring retainers.
Key Features:
- Gas-charged for consistent performance
- 10% stiffer springs for improved ride and load capacity
- Ideal for use with snow plows
- Durable black finish
- Direct bolt-on design
- Spring pre-installed for easy installation
- Sold individually
Specifications:
- Top Hole I.D.: 16 mm
- Top Eyelet Width: 20 mm
- Bottom Hole I.D.: 10 mm
- Bottom Eyelet Width: 21 mm
- Tube Outer Diameter: 38 mm
- Stroke: 65 mm
- Spring Outer Diameter: 72 mm
- Spring Wire Diameter: 8.5 mm
- Spring Rate: 221 lbs/inch (3.95 kg/mm)
- Center to Center Length: 347 mm (13 2/3 inches)
