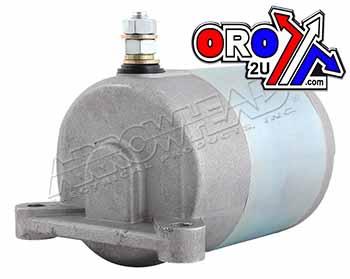

STARTER MOTOR POLARIS, ARROWHEAD 410-22077 SMU0569, 4013428 4014972 4015223 POLARIS
Starter motor for Polaris models. Specifications: Type Permanent Magnet Direct Drive (PMDD), 12-Volt, Clockwise (CW) rotation, 9 teeth. Gear OD 0.465 inches (11.800 mm), Length 3.839 inches (97.500 mm), Mount Hole ID 16.500 mm. Mounting Hole 1 Type: Unthreaded. Mounting Hole 2 Type: Unthreaded. Registry OD 1.181 inches (30 mm). Features an M6 B+ stud. Mounting Ear Distance: 160.100 mm (6.306 inches). Meets or exceeds OEM quality. Direct OEM replacement with stock mounting locations. Designed to handle increased power loads. Made to OEM specifications, matching original equipment appearance. All electrical parts are 100% factory tested before shipping. Cross reference numbers: SMU0569 Arrowhead, 410-22077 J&N, 4013428 Polaris, 4014972 Polaris, 4015223 Polaris.
- SKU
- 19-0105.AH
- Brand
- Arrowhead Electrical
- Availability
- In Stock (6)
FULL DESCRIPTION
Arrowhead Starter Motor SMU0569
This high-quality starter motor is designed as a direct replacement for your original unit, ensuring seamless integration and reliable performance. Manufactured by Arrowhead Electrical, it meets or exceeds OEM specifications and is built to handle increased power loads, providing a dependable start every time.
Key Features:
- Type: Permanent Magnet Direct Drive (PMDD) for efficient operation.
- Voltage: Operates on a 12-Volt system.
- Rotation: Clockwise (CW) rotation direction.
- Teeth Count: Features 9 teeth for proper engagement.
- Dimensions: Includes precise measurements for gear outside diameter, overall length, mount hole identification and size, and registry outside diameter.
- Mounting: Equipped with an M6 B+ Stud and unthreaded mount holes for straightforward installation.
- OEM Quality: Engineered to match original equipment appearance and function.
- Performance: Designed to handle increased power loads for enhanced durability.
- Testing: All electrical parts are 100% factory tested before shipment to guarantee quality.
- Value: Offers the best value for money in starter motor replacements.
Specifications:
- Type: Permanent Magnet Direct Drive (PMDD)
- Voltage: 12-Volt
- Rotation Direction: Clockwise (CW)
- Number of Teeth: 9
- Gear OD: 0.465" (11.800 mm)
- Length: 3.839" (97.500 mm)
- Mount Hole ID: 16.500 mm
- Mount Hole 1 Type: Unthreaded
- Mount Hole 2 Type: Unthreaded
- Registry OD: 1.181" (30 mm)
- B+ Stud: M6
- Mounting Ear Distance: 12.366" (160.100 mm)
Cross Reference Numbers:
- SMU0569 (Arrowhead)
- 410-22077 (J & N)
- 4013428 (Polaris)
- 4014972 (Polaris)
- 4015223 (Polaris)
Important Note: Due to the nature of electrical components, returns are not accepted on this item. Please ensure compatibility before purchase. Consult a professional for installation if you are unsure.
