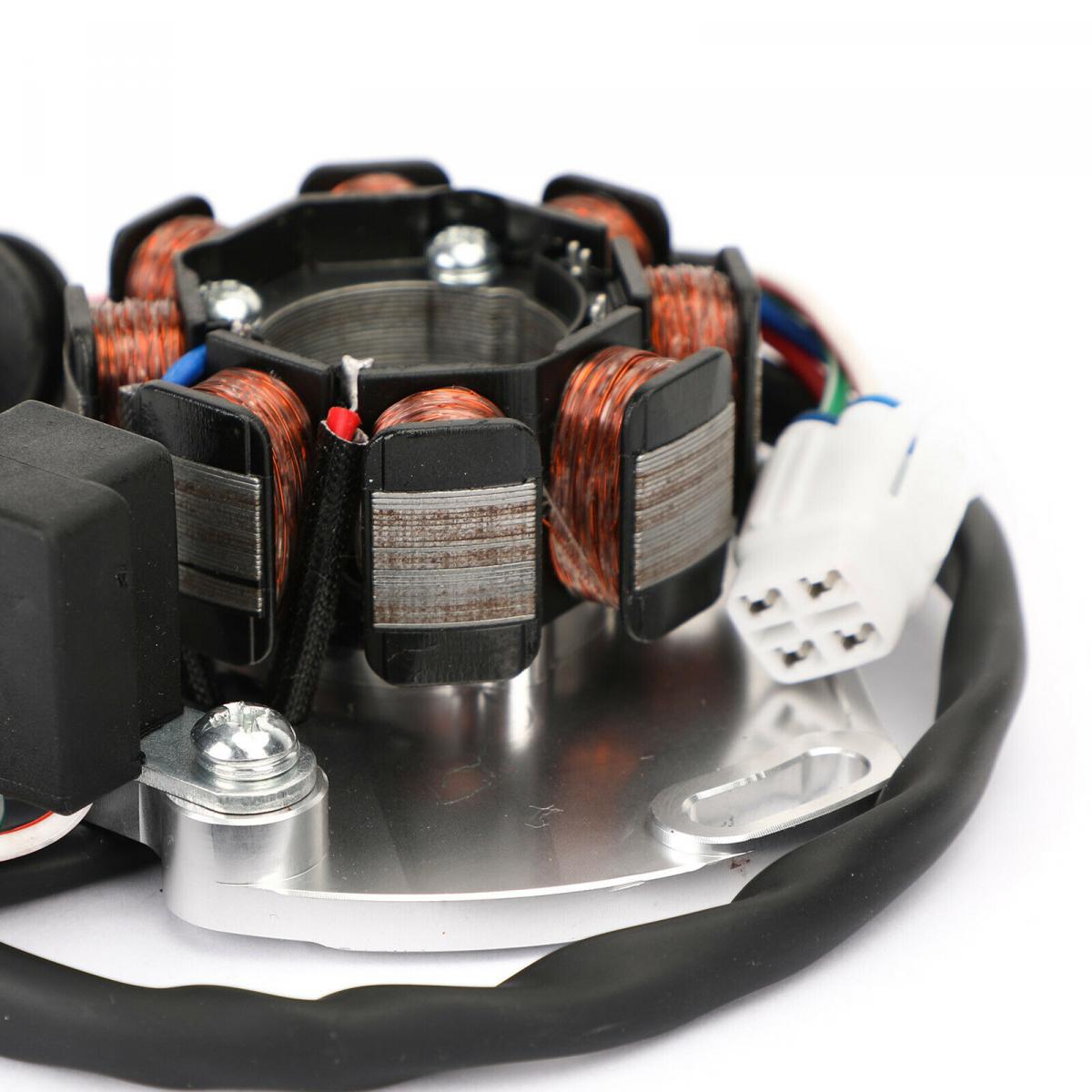

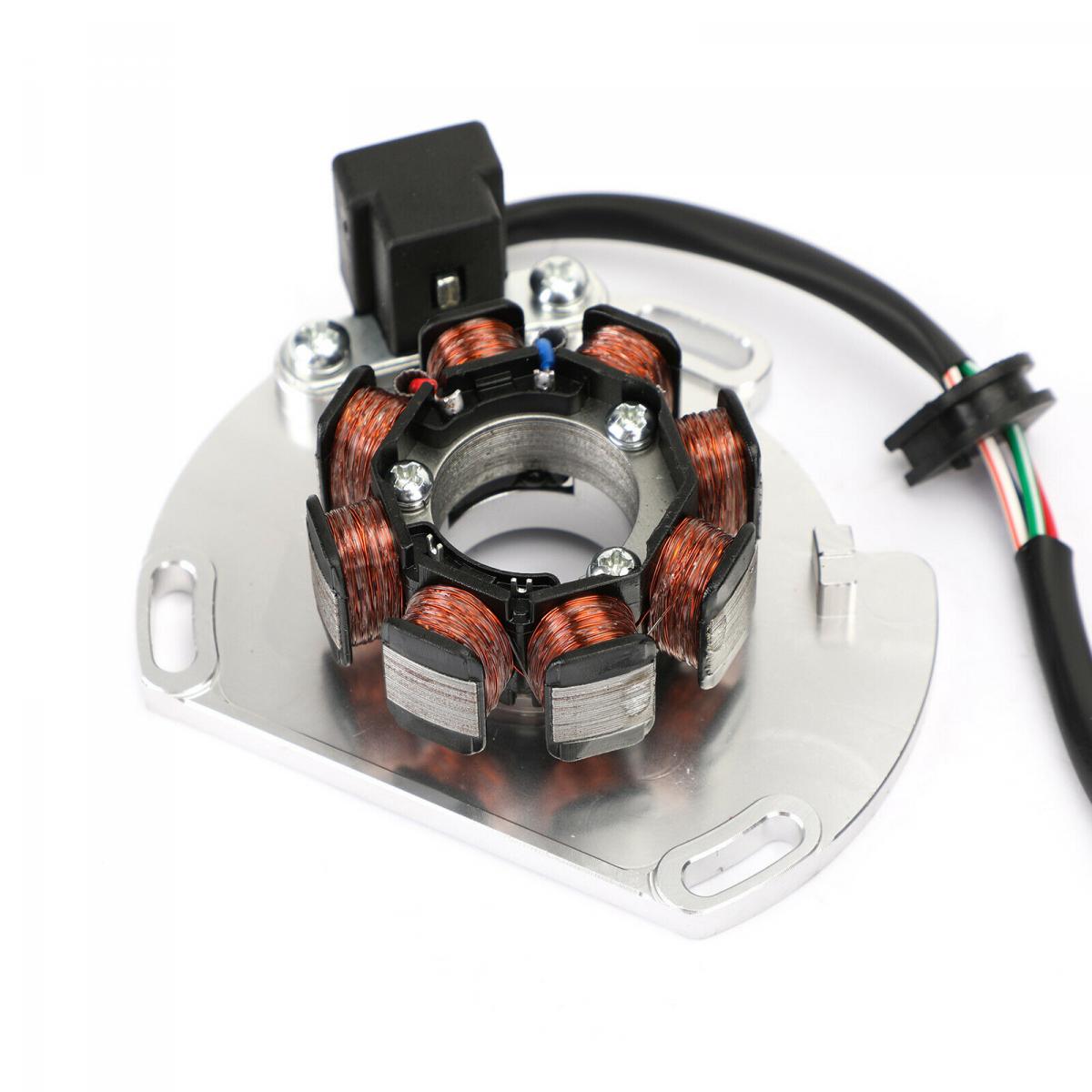

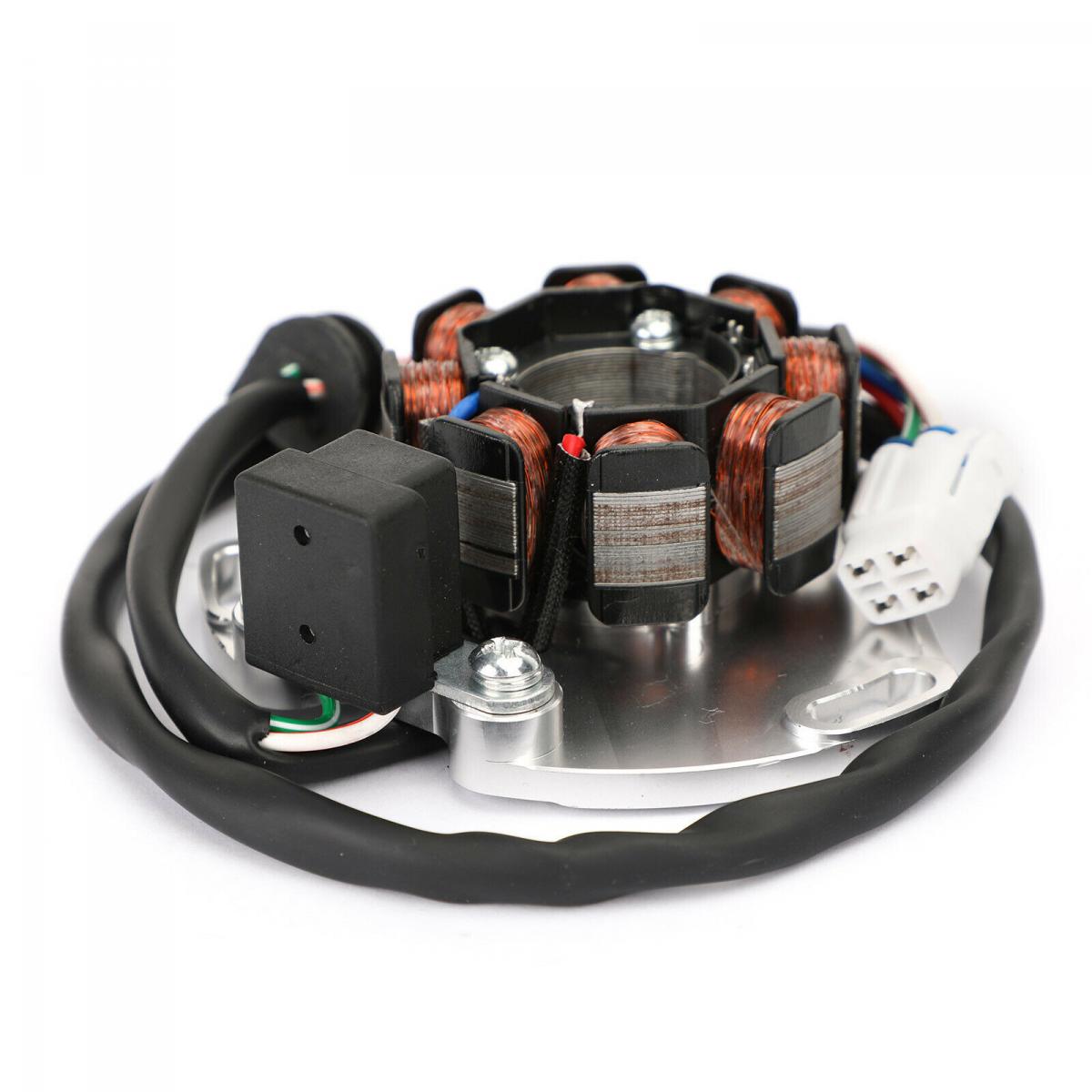

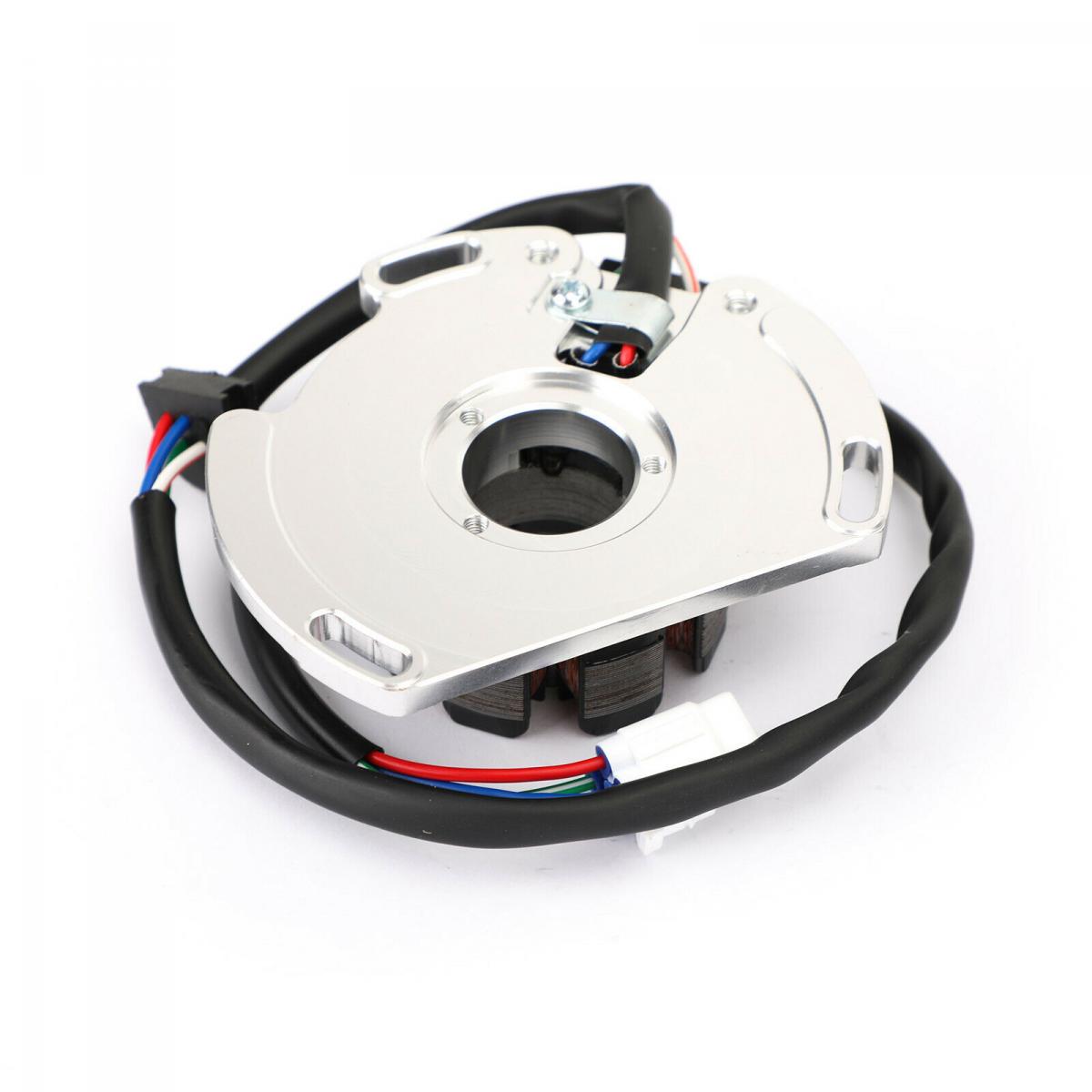

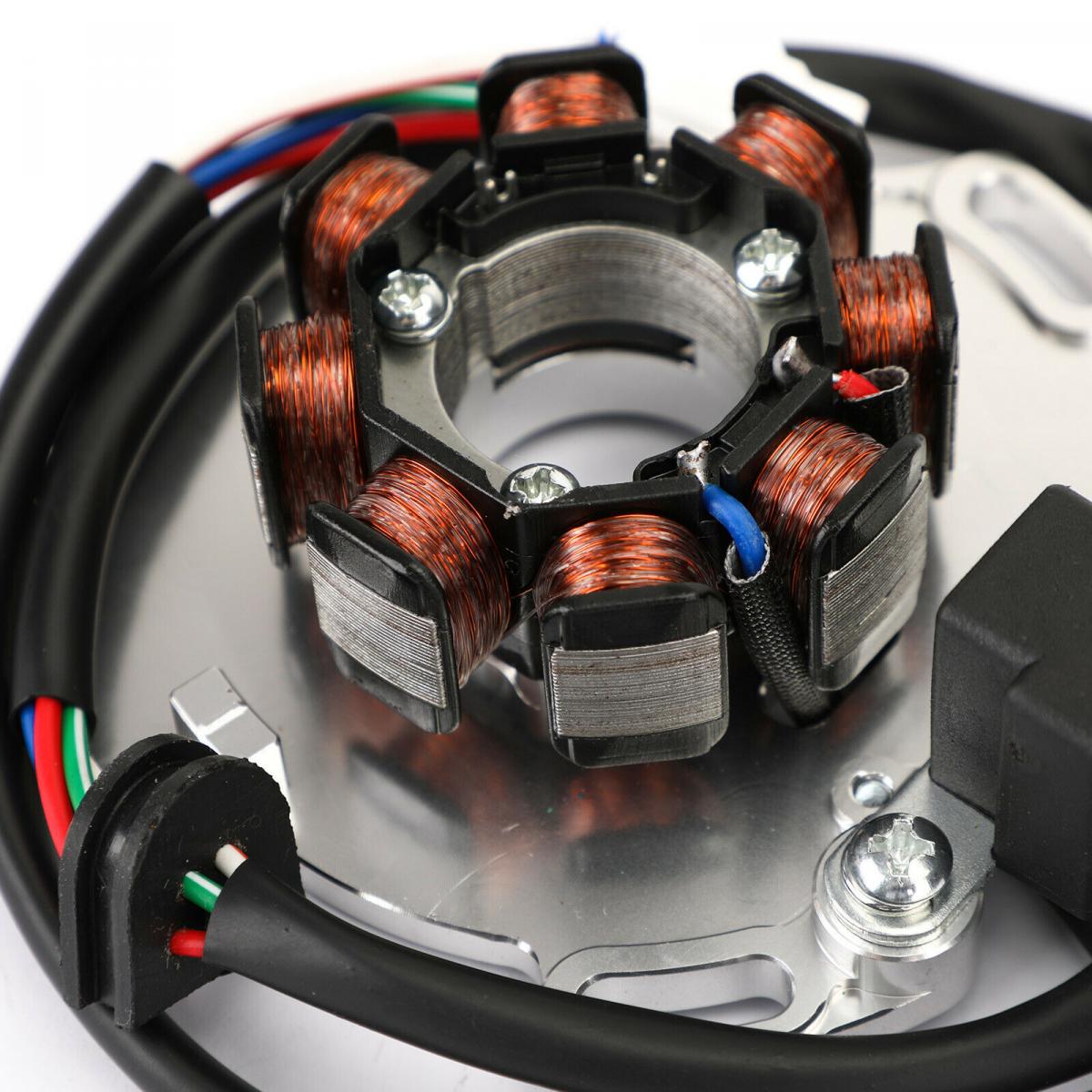

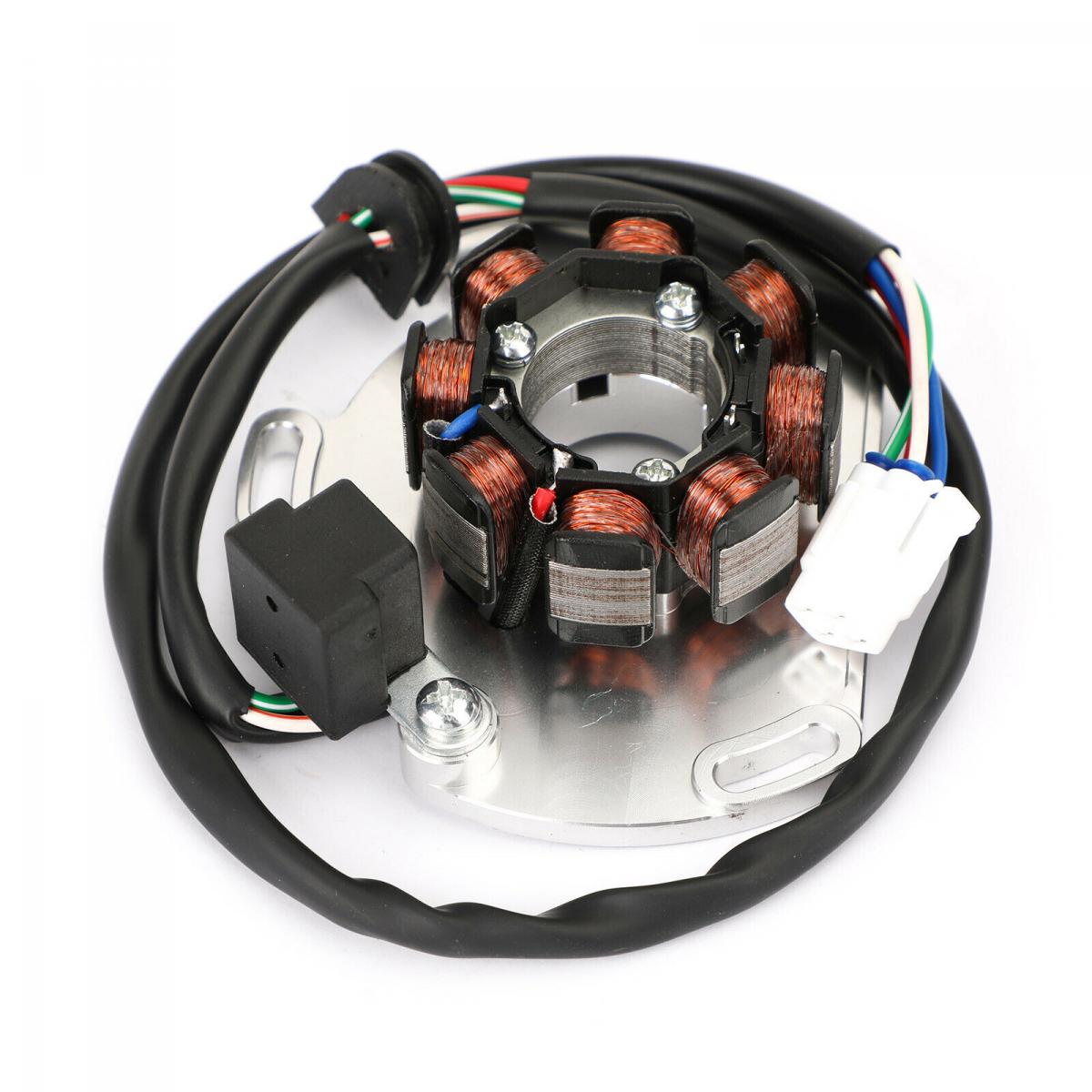

STATOR COIL 09-22 KTM HUSQVARNA XC SX SXS TC 65 46239004000
This Dirt Racing stator coil is a direct replacement electrical component designed to replace the original stator assembly on selected motocross models. It uses stock mounting locations for a direct fit and maintains original-style appearance. The stator is designed to handle increased electrical power loads and meets or exceeds OEM quality requirements. It is factory tested for reliability. Specifications include an interior diameter of 27 mm, exterior diameter of 60.8 mm, pole thickness of 24 mm, and pole width of 15 mm. It has 4 wires, 4 pins, 1 plug, 3 fixation holes, and 8 poles. Cross-reference OEM part number is 46239004000.
- SKU
- 44-9123.DR
- Brand
- Dirt Racing
- Availability
- In Stock (4)
FULL DESCRIPTION
Dirt Racing Stator Coil - Direct Replacement for KTM and Husqvarna 65cc
This stator coil is a direct replacement electrical component designed for select KTM and Husqvarna 65cc motocross models. It ensures seamless integration by utilizing stock mounting points, supporting your motorcycle's ignition and electrical system with an appearance that matches the original equipment.
Key Features:
- Meets or exceeds OEM quality standards.
- Designed as a direct OEM replacement.
- Installs using stock mounting locations for ease of fitment.
- Engineered to manage increased electrical power loads.
- Manufactured to replicate the original equipment appearance.
- Factory tested for reliability prior to shipping.
- An economical replacement option that doesn't compromise quality.

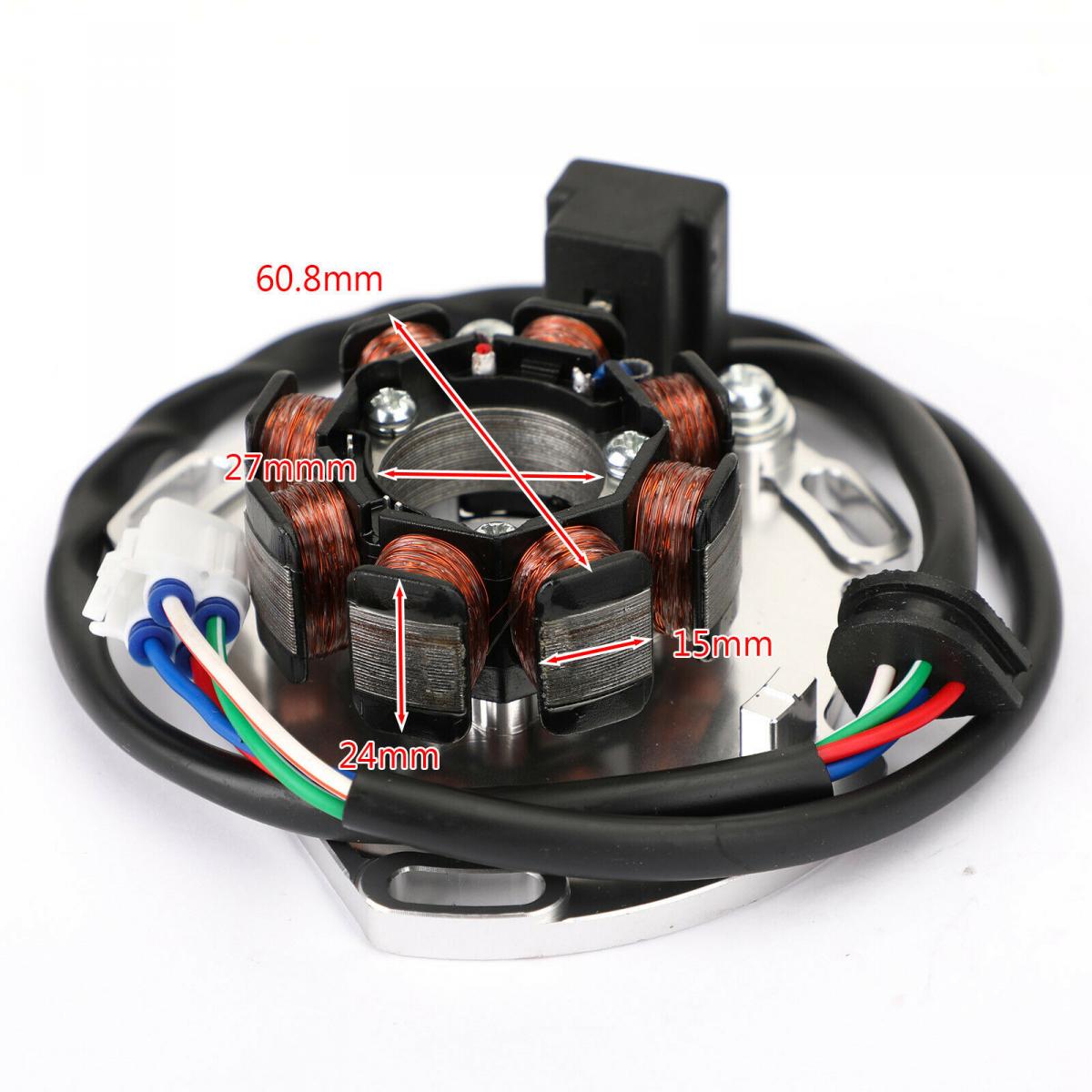

Specifications:
- Interior Diameter: 27 mm
- Exterior Diameter: 60.8 mm
- Pole Thickness: 24 mm
- Pole Width: 15 mm
- Number of Wires: 4
- Number of Pins: 4
- Number of Plugs: 1
- Number of Fixation Holes: 3
- Number of Poles: 8
Note: Please verify the product image before ordering to confirm compatibility with your specific motorcycle.
Replaces OEM Part Number:
- 46239004000
