SWITCH HANDLEBAR LH YAMAHA ATV 6AC UNVERSAL FITMENT

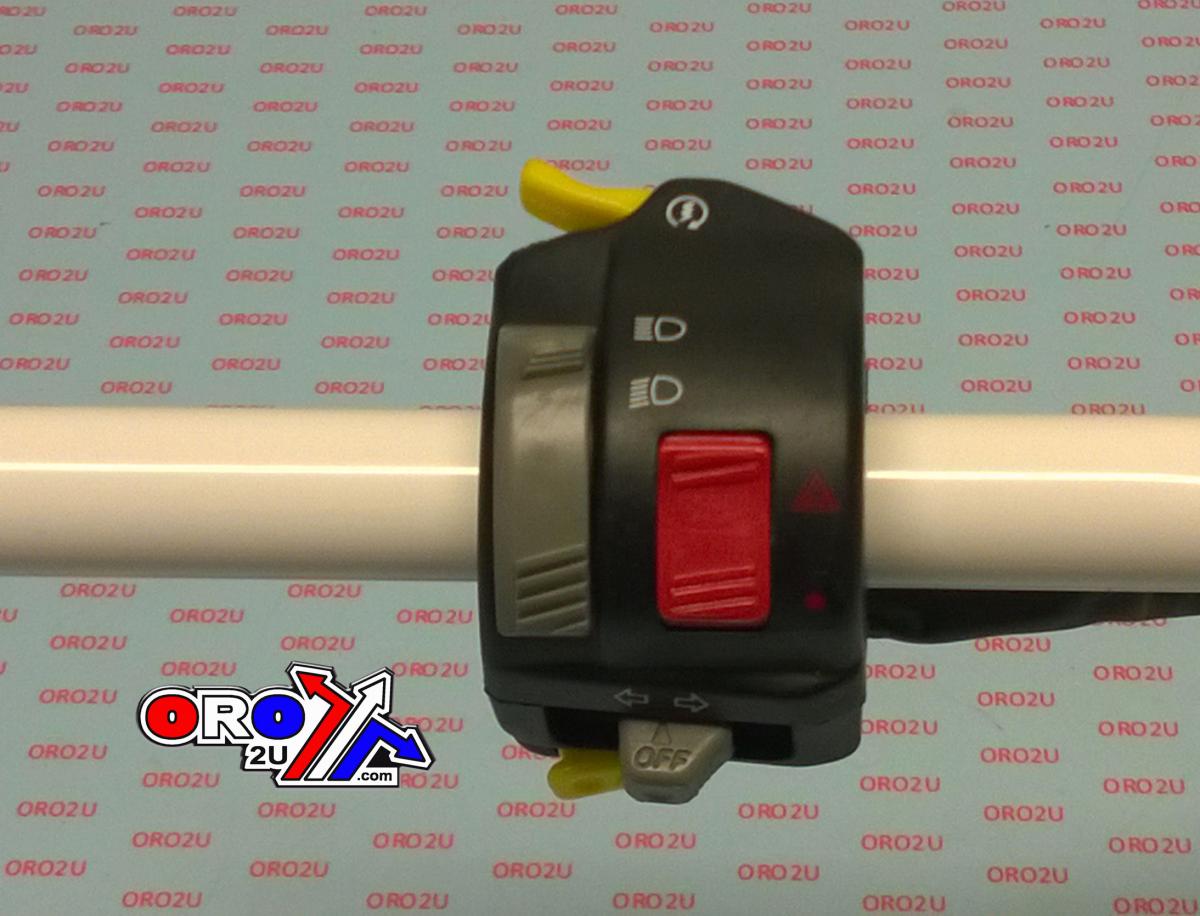

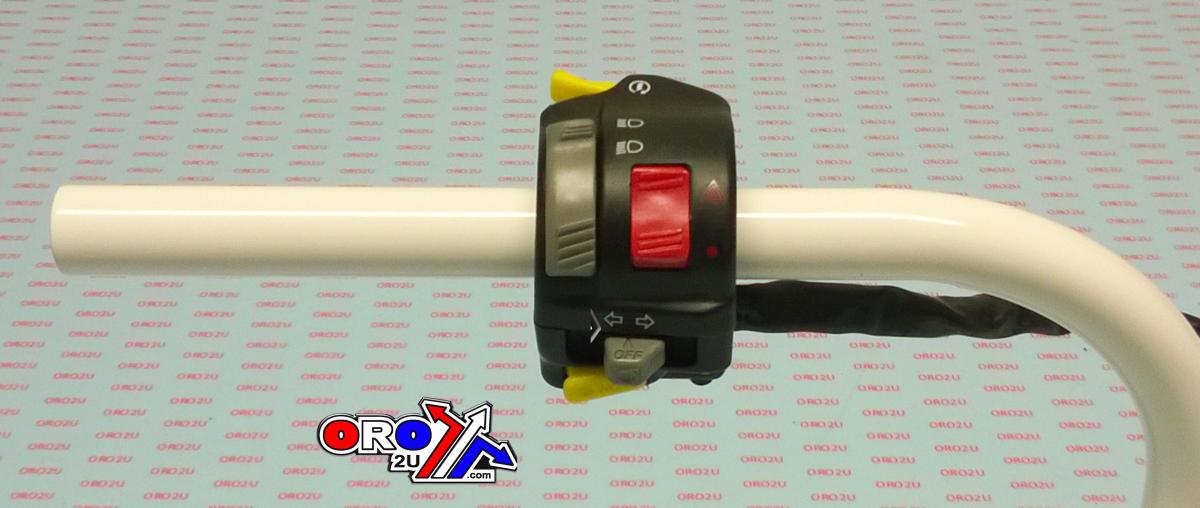

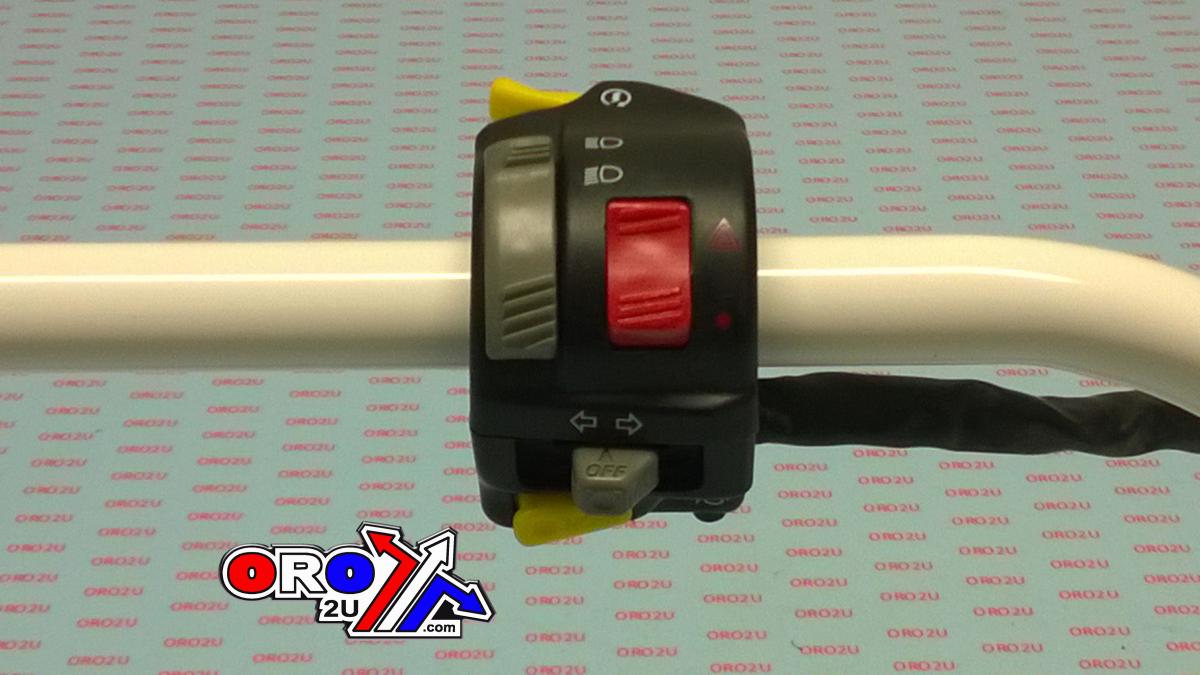

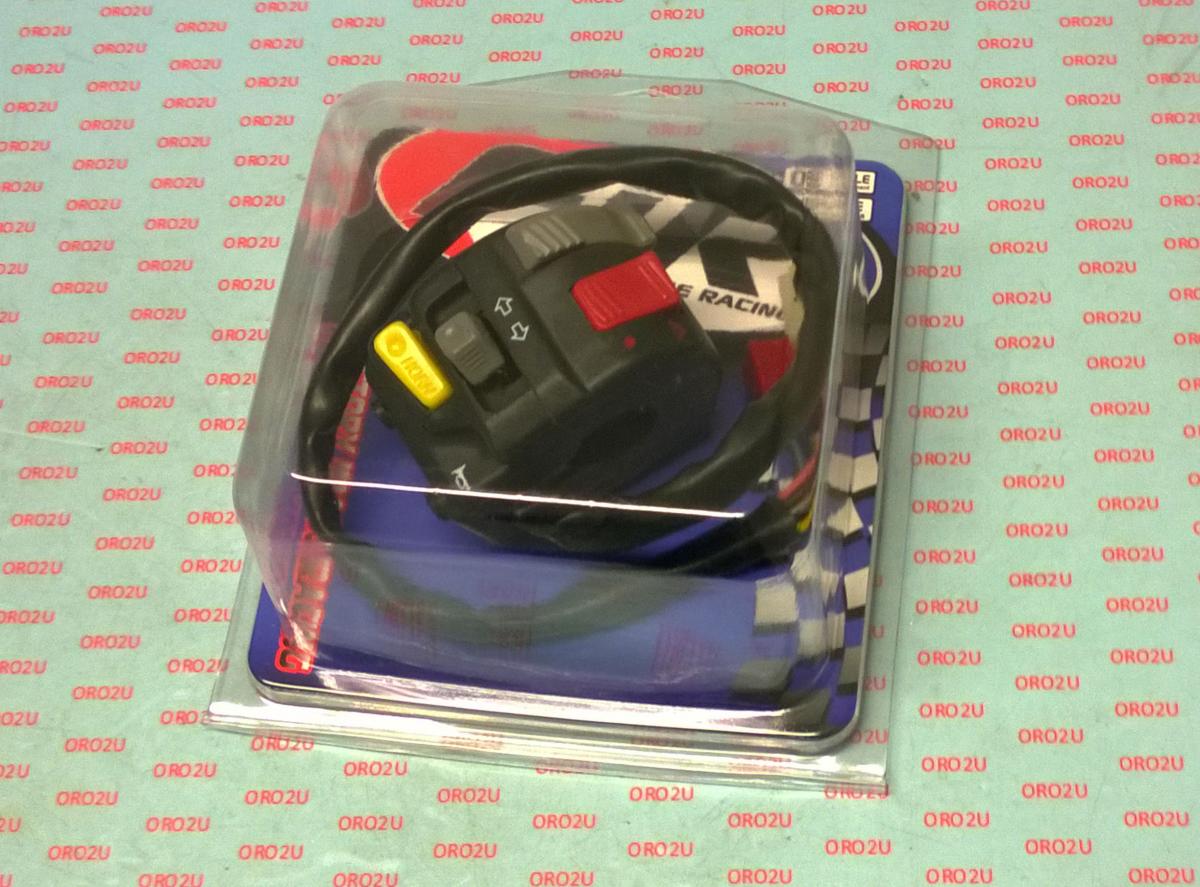

This left-hand handlebar multi-function switch assembly features five buttons for integrated turn indicators, headlight control, horn, and hazard functions. The indicator function includes right, left, and center push cancelling. The headlight control offers high/low beam selection. This unit is designed for 7/8 inch (22.2 mm) handlebars and uses a 9-wire loom with two OEM connector blocks (5-wire red block and 4-wire white block). It is referenced as Bronco AT-01506.
- SKU
- 44-743
- Brand
- Factory Image Racing
- Availability
- In Stock (96)
FULL DESCRIPTION
Left Handlebar Multi-Function Switch Assembly for Yamaha ATVs
This left-hand handlebar multi-function switch assembly is designed for Yamaha ATV applications featuring the 6AC designation. It integrates essential controls into a single, compact unit, offering a convenient 5-button layout for managing various functions.
Key Features:
- Five-Button Operation: Provides access to multiple functions via an intuitive button layout.
- Turn Indicators: Includes controls for right and left turn signals, with a center push-to-cancel feature for ease of use.
- Headlight Control: Allows for easy switching between high and low beam settings.
- Horn Activation: Features a dedicated button for activating the horn.
- Hazard Switch: Includes a hazard light switch for emergency signaling.
Specifications:
- Position: Left-hand handlebar mount.
- Wiring Harness: Features a 9-wire configuration for comprehensive functionality.
- Wire Length: Approximately 19 inches, providing ample reach.
- Connectors: Equipped with two OEM-style connector blocks: a 5-wire red block and a 4-wire white block for secure and direct connection.
- Handlebar Compatibility: Designed to fit standard 7/8 inch (22.2 mm) handlebars.
This switch assembly is also identified by the part number AT-01506.
