TI GR5 BOLTS DISC HONDA KIT/10, TITANIUM FRONT & REAR KIT 95>2021, / FIR BRAND
Factory Image Racing Titanium Grade 5 bolt disc set of 10 nuts and bolts. Material is Grade 5 (6Al/4V) Titanium. Bolt pitch is M6x1.00mm, overall length is 19.60mm, thread length is 11.00mm, head HEX is 10mm spanner. Nut pitch is M6x1.00mm, OD size is 12.70mm, overall height is 7.25mm, head Hex size is 10mm spanner. Nut flange surface area is smooth/flush with a metal insert lock. Each pack quantity is 10. OEM reference numbers are 90105-MAC-680 and 90301-473-003. Cross reference numbers include 90105-MAC-680, 90301-473-003, 90301-473-013, and 90301-MC7-003.
- SKU
- 08-381.SET.TIT
- Brand
- Factory Image Racing Titanium
- Availability
- In Stock (43)
FULL DESCRIPTION

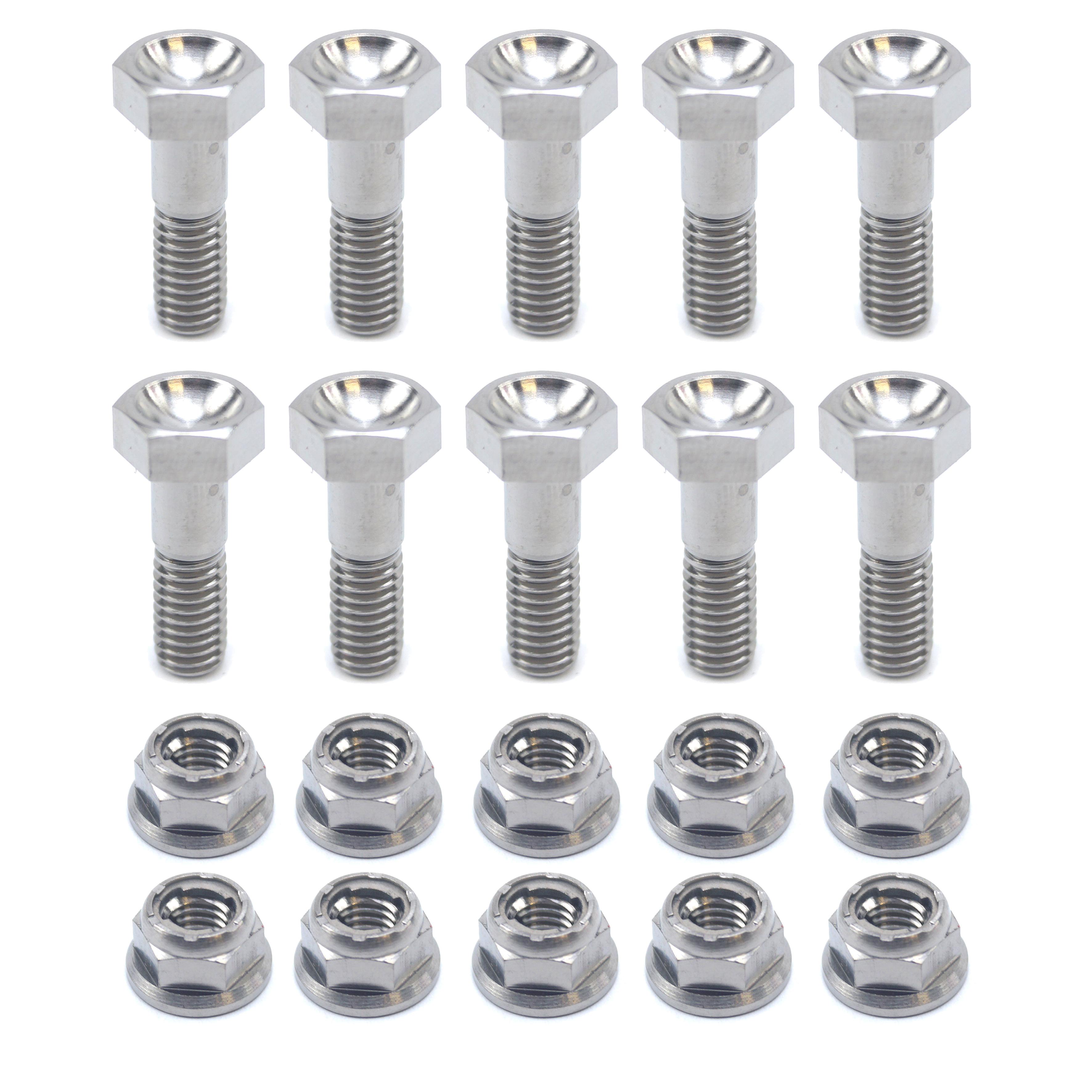

Factory Image Racing Titanium Grade 5 Disc Bolt Set for Honda
Upgrade your motorcycle's braking system with this premium set of 10 titanium disc bolts and nuts from Factory Image Racing. Crafted from Grade 5 (6Al/4V) titanium, the highest grade available, these components offer exceptional strength and corrosion resistance. This kit is designed to replace your front and rear brake disc hardware, providing a significant aesthetic and performance upgrade.
Key Features:
- Material: Grade 5 (6Al/4V) Titanium for superior strength and durability.
- Bolt Specifications: M6x1.00mm pitch, 19.60mm overall length, 11.00mm thread length, 10mm hex head.
- Nut Specifications: M6x1.00mm pitch, 12.70mm outer diameter, 7.25mm overall height, 10mm hex head, smooth/flush flange, and metal insert locking mechanism.
- Pack Quantity: Includes 10 bolts and 10 nuts.
- High-Performance: Offers a lightweight alternative to standard steel hardware.
- Aesthetic Appeal: Titanium provides a distinctive, high-performance look.
Cross Reference Numbers:
- 90105-MAC-680
- 90301-473-003
- 90301-473-013
- 90301-MC7-003
