TOP END PISTON KIT 69-73 KAWASAKI H1 500 60.5mm 0.5mm OVER VINTCO KTK01-0.5

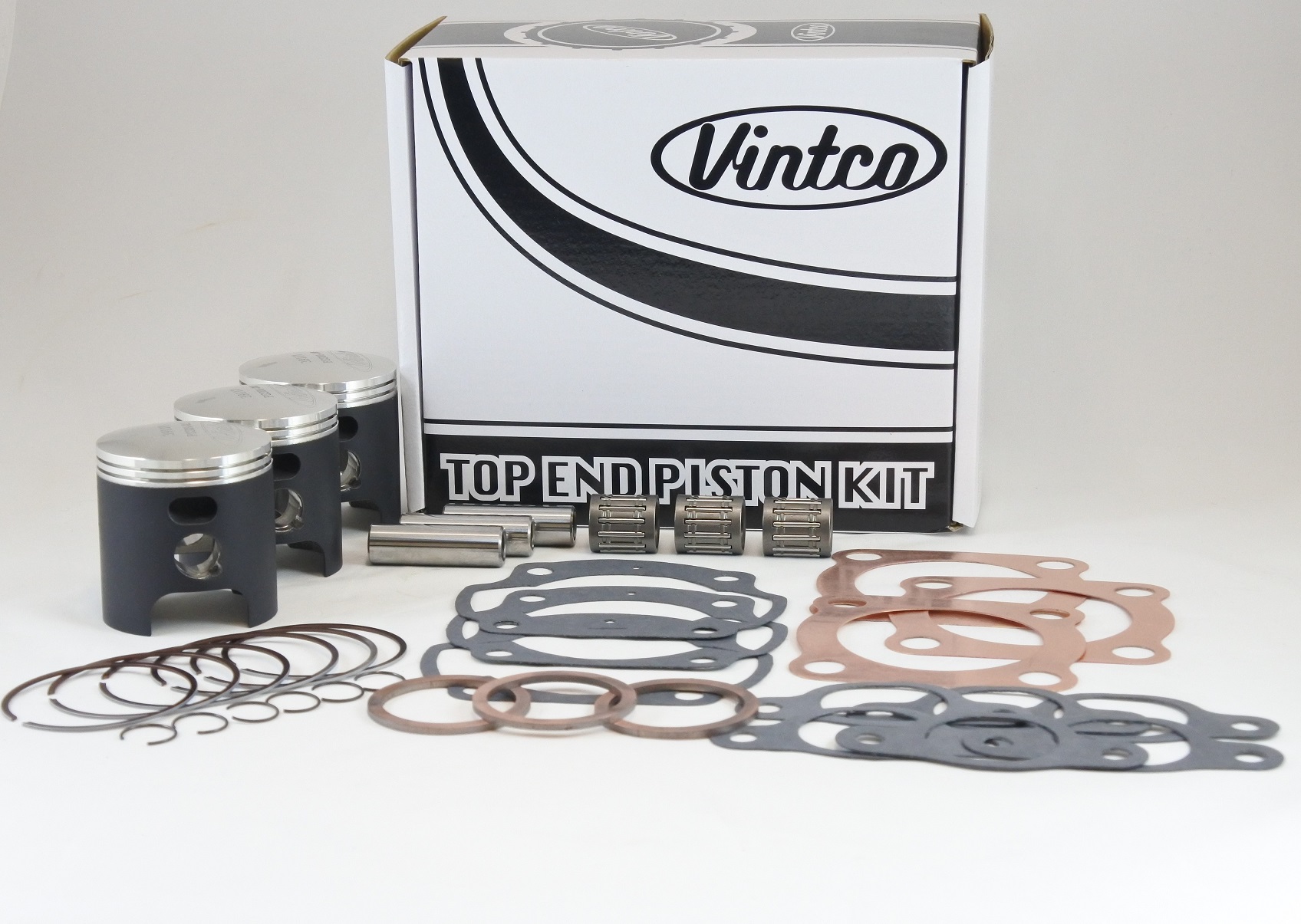

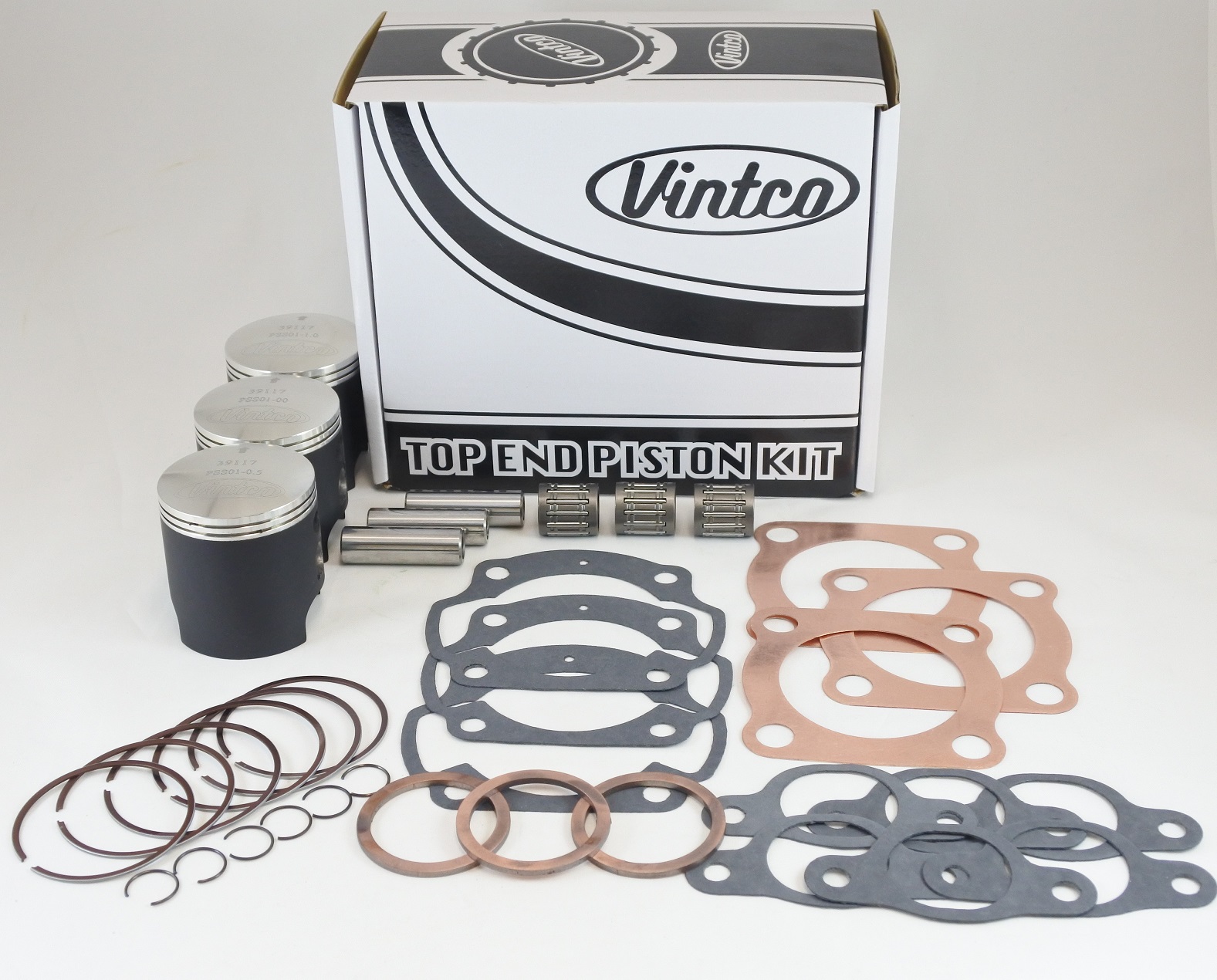

This VintCo top end piston kit is a complete rebuild set for Kawasaki H1-500 models from 1969 to 1973. It is supplied as an oversize kit for top end servicing and includes piston assemblies with rings, pins and clips, wrist pin bearings, and a full top-end gasket set for the entire engine top end. The components are produced using modern materials and manufacturing methods to provide OEM-equivalent fitment and performance. This kit includes 3 pistons, 3 head gaskets, 3 base gaskets, 6 intake gaskets, 3 exhaust gaskets, and 3 wrist pin bearings. The pistons are forged with an MoS2 coating for break-in and have a size of 60.5 mm with a +0.5 mm oversize. The piston diameter is listed as 60.43 mm, with a piston clearance of 0.07 mm. VintCo Part Number: KTK01-0.5. Country of manufacture: Germany.
- SKU
- VIN-KTK01-0.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit for Kawasaki H1-500
Restore your Kawasaki H1-500's performance with this comprehensive VintCo Top End Piston Kit. Designed for models from 1969 to 1973, this kit provides everything needed for a complete top-end engine rebuild. Featuring precision-engineered components manufactured using modern techniques, this kit ensures OEM-equivalent fitment and reliable performance.
Key Features:
- Complete top-end rebuild solution for a hassle-free overhaul.
- Includes three high-quality piston assemblies, complete with rings, pins, and clips.
- Comes with three wrist pin bearings for smooth operation.
- A full top-end gasket set is provided, covering the entire engine top end for a complete seal.
- MoS2-coated pistons facilitate an easier and more effective break-in process.
- Manufactured in Germany for exceptional quality and durability.
- Forged piston construction ensures strength and longevity.
Specifications:
- Piston Size: 60.5 mm
- Oversize: +0.5 mm over
- Piston Diameter: 60.43 mm
- Piston Clearance: 0.07 mm
- Number of Pistons: 3
- Number of Head Gaskets: 3
- Number of Base Gaskets: 3
- Number of Intake Gaskets: 6
- Number of Exhaust Gaskets: 3
- Number of Wrist Pin Bearings: 3
Cross-Reference OEM Part Numbers:
- Pistons: 13029-031
- Head Gasket: 11004-048
- Base Gasket: 11009-019
- Intake Gasket: 16062-011
- Exhaust Gasket: 18067-008
- Wrist Pin Bearing: 93310-216E1-00
