TOP END PISTON KIT 74-78 HONDA CR MT R 125 57.0mm OVER VINTCO KTH01-1.0

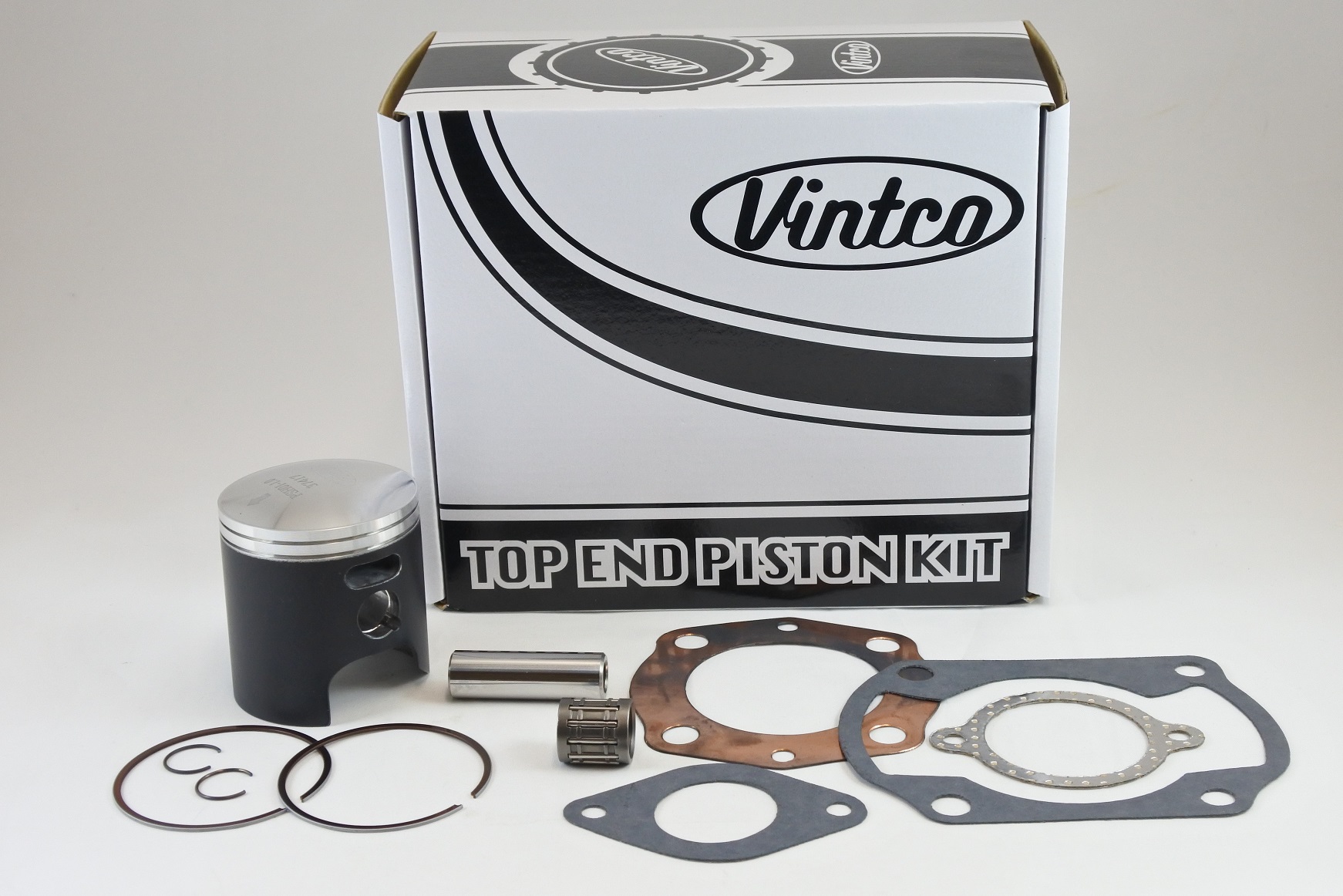

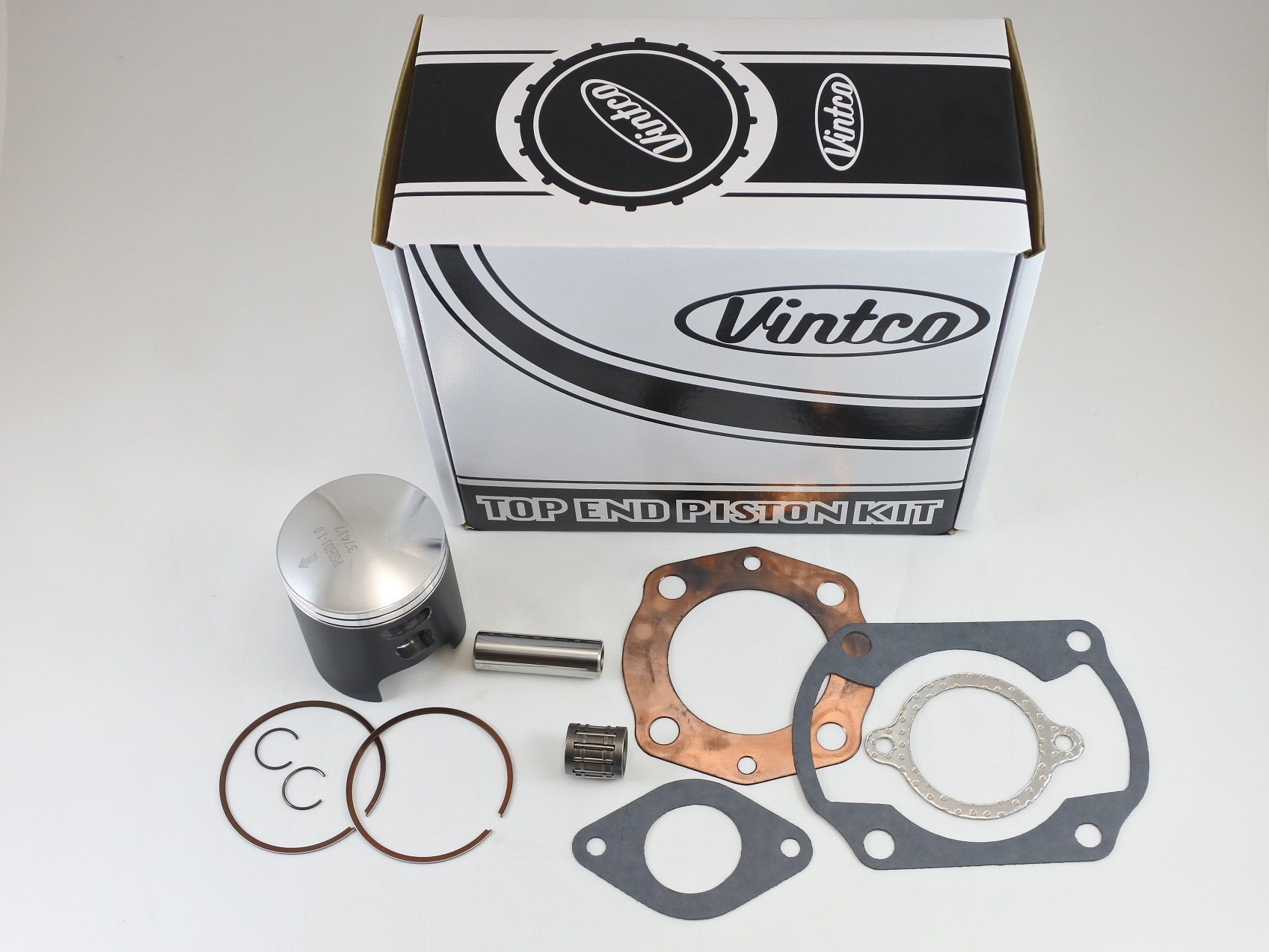

VintCo top end piston kit KTH01-1.0 is a complete rebuild kit including a 57.0 mm (+1.0 mm oversize) piston kit with piston, rings, pin and clips, a wrist pin bearing, and a full top-end gasket set with head, base, intake and exhaust gaskets. The forged piston is made in Germany and features an MoS2 coating. Bore size is 57.0 mm with a 56.94 mm piston diameter and 0.06 mm piston clearance. This kit is designed to simplify top-end rebuild work and provides OEM-equivalent or better fit and performance. VintCo Part Number: KTH01-1.0. Cross-reference OEM Part Numbers: Piston: 13105-360-700, Head Gasket: 12251-360-000, Base Gasket: 12191-373-306, Intake Gasket: 16212-360-306, Exhaust Gasket: 18359-360-000, Wrist Pin Bearing: 91007-444-004. Other size options are available.
- SKU
- VIN-KTH01-1.0
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit 74-78 Honda CR MT R 125 57.0mm Oversize
Revitalize your motorcycle's engine with the VintCo Top End Piston Kit. This comprehensive kit is designed for a straightforward top-end rebuild, offering a cost-effective solution compared to purchasing individual components. It ensures OEM-equivalent or superior fit and performance for your engine.
Key Features:
- Complete top-end rebuild solution
- Includes a 57.0 mm (+1.0 mm oversize) forged piston, piston rings, wrist pin, and circlips
- Comes with a high-quality wrist pin bearing
- Full top-end gasket set included: head gasket, base gasket, intake gasket, and exhaust gasket
- Engineered to simplify the top-end rebuild process
- Supplies OEM part numbers for precise fit verification
- Other bore sizes are available to suit your needs
Specifications:
- Kit Bore Size: 57.0 mm
- Oversize: +1.0 mm
- Piston Diameter: 56.94 mm
- Piston Clearance: 0.06 mm
- Piston Type: Forged
- Piston Manufacturing Origin: Germany
- Piston Coating: MoS2
