TOP END PISTON KIT 81-82 MAICO 490 88.0mm 1.5mm OVER VINTCO KTA06-1.5

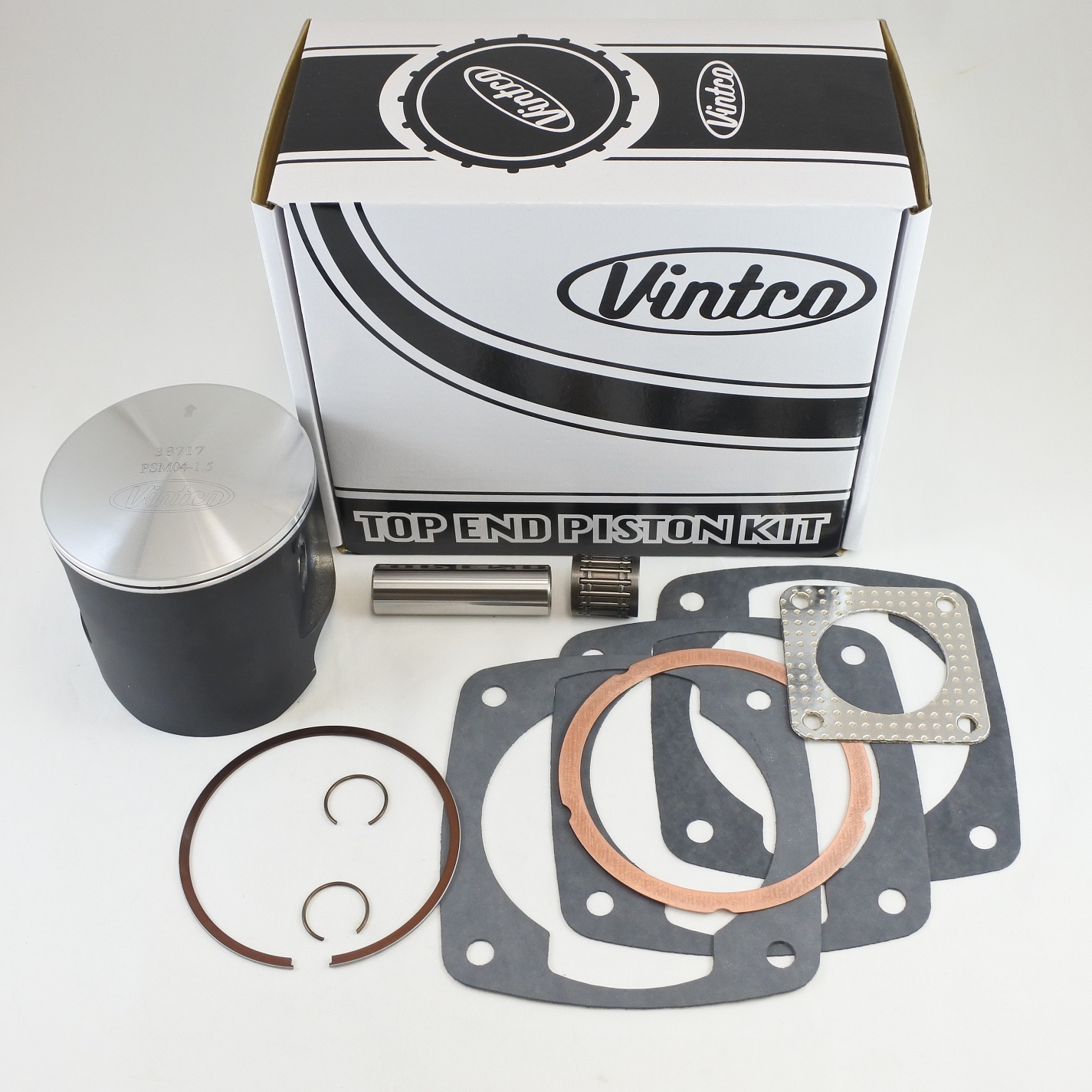

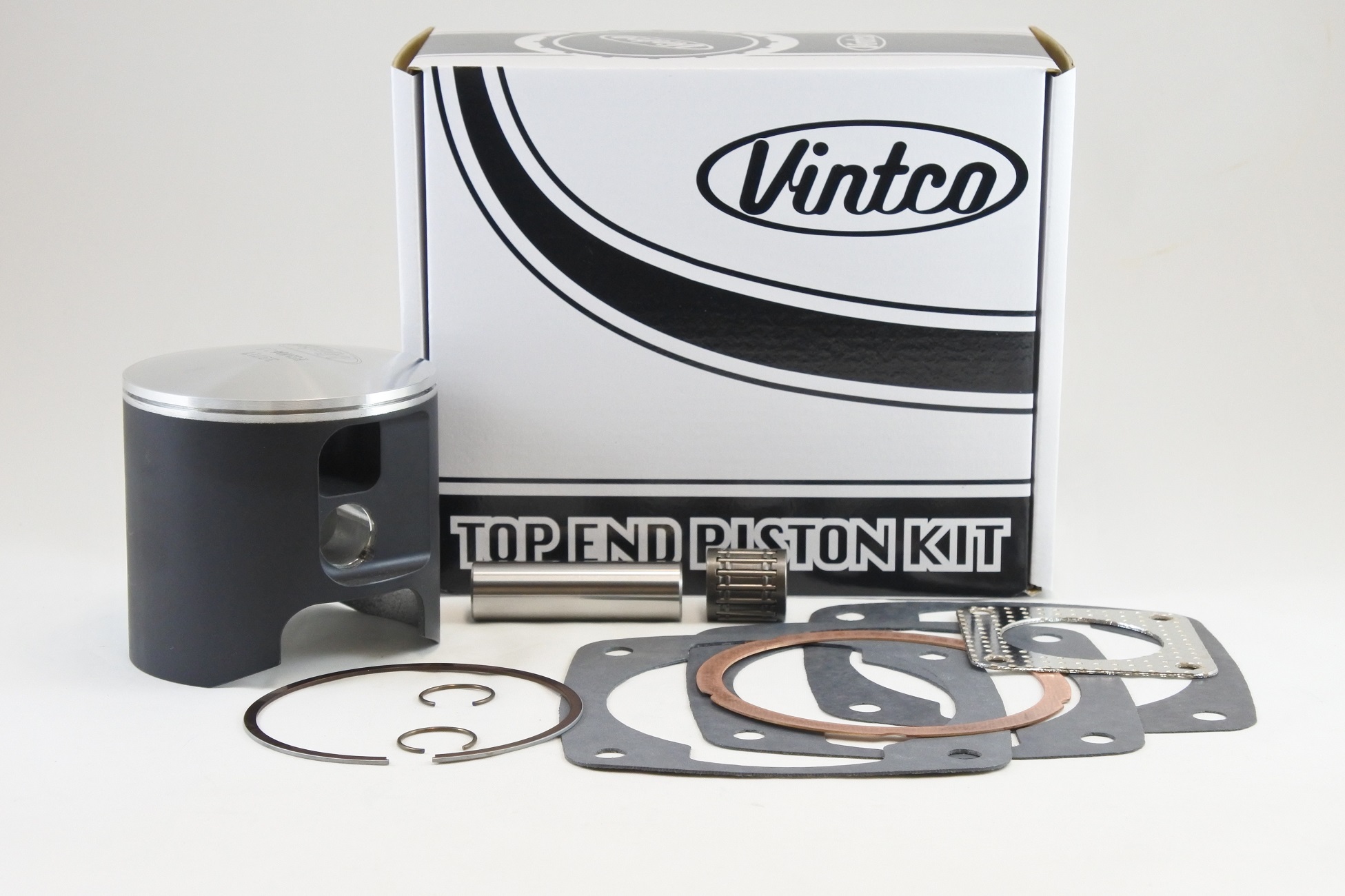

This Vintco top end piston kit is designed for 1981–1982 Maico 490 models and includes a VintCo piston kit with piston, rings, pin and clips, a top end bearing, and a full top-end gasket set with head, base and exhaust gaskets. It is manufactured using modern materials and production methods for OEM-compatible fitment and performance. The MoS2-coated piston is intended for running-in and for 1.5 mm oversize applications. The kit includes a piston diameter of 88.0 mm and an oversize of +1.5 mm. Piston size is 87.92 mm with 0.08 mm clearance. Base gasket thicknesses are 0.3 mm, 0.5 mm, and 0.7 mm. The piston is forged and made in Germany. Vintco Part Number KTA06-1.5. Cross-reference OEM part numbers: Head gasket OE# 6795, Base gasket OE# 6793, OE# 6794, OE# 6795, Exhaust gasket OE# 298, Wrist pin bearing OE# 424.
- SKU
- VIN-KTA06-1.5
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
Vintco Top End Piston Kit - 1.5mm Oversize for Maico 490 (1981-1982)
This comprehensive top-end piston kit is engineered to facilitate a complete top-end rebuild for your 1981-1982 Maico 490 motorcycle. Manufactured with modern materials and production techniques, this kit ensures an OEM-compatible fit and exceptional performance. The kit is designed for 1.5mm oversize applications and includes all necessary components for a successful engine overhaul.
Key Features:
- Complete kit for a full top-end rebuild.
- Includes a VintCo piston, rings, wrist pin, and clips.
- Comes with a top-end bearing for smooth operation.
- Features a full top-end gasket set, including head, base, and exhaust gaskets.
- MoS2-coated piston specifically designed for optimal running-in.
- Designed for 1.5mm oversize applications.
- Manufactured in Germany using high-quality forged materials.
- Offers a cost saving compared to purchasing individual components.
Specifications:
- Piston Diameter: 88.0 mm
- Oversize: +1.5 mm
- Piston Size: 87.92 mm
- Piston to Cylinder Clearance: 0.08 mm
- Included Base Gasket Thicknesses: 0.3 mm, 0.5 mm, 0.7 mm
- Piston Type: Forged
Cross-Reference OEM Part Numbers:
- Head Gasket: OE# 6942
- Base Gasket: OE# 6793
- Base Gasket: OE# 6794
- Base Gasket: OE# 6795
- Exhaust Gasket: OE# 298
- Wrist Pin Bearing: OE# 424
