TOP END PISTON KIT 82-83 HONDA CR 480 88.92MM STANDARD VINTCO KTH28-00

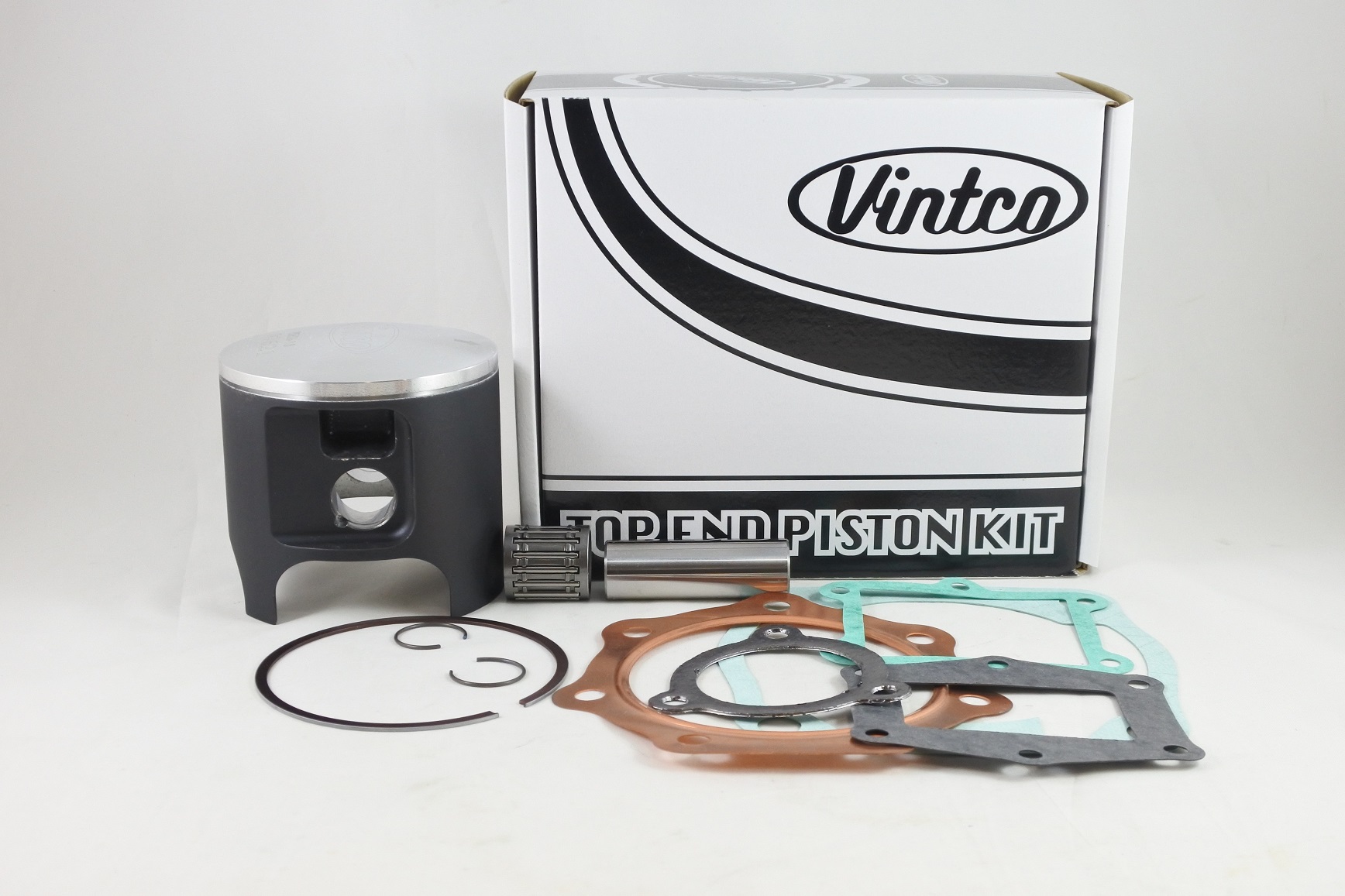

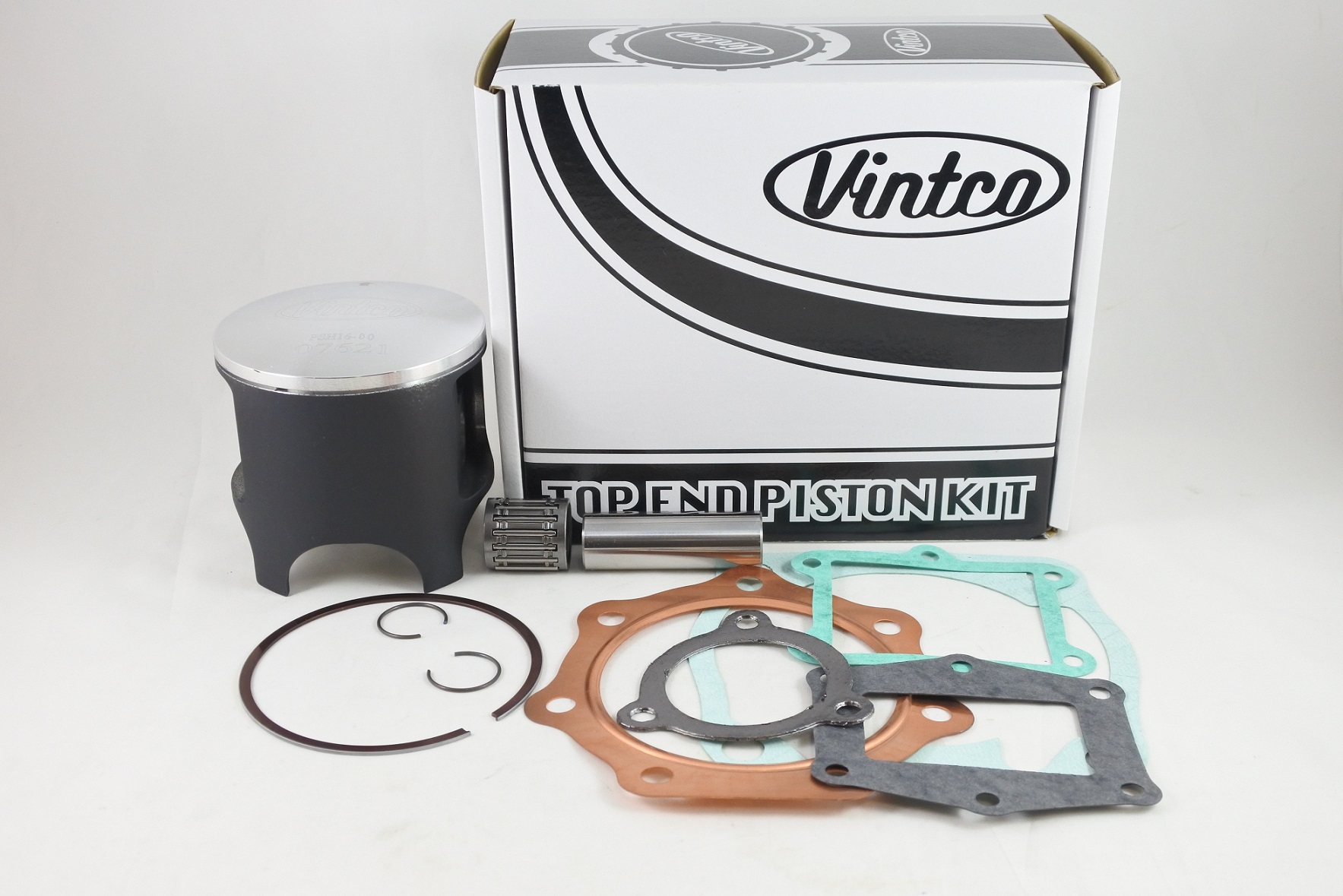

VintCo KTH28-00 is a top end piston kit for 1982-1983 Honda CR480 models in standard 88.92 mm size. It is supplied as a complete rebuild set including the piston kit, wrist pin bearing and a full top-end gasket kit for straightforward top end service. Components are produced using modern materials and manufacturing methods for OEM-style fit and performance. Includes piston, rings, pin and clips. Includes wrist pin bearing. Includes full top-end gasket kit, head gasket, base gasket, intake gaskets, and exhaust pipe gasket. VintCo Part Number: KTH28-00. Standard piston size: 88.92 mm. Piston clearance: 0.08 mm. Forged piston with MOS2 coating for break-in. Made in Germany. Cross-Reference OEM Part Numbers: Head gasket: 12254-KA5-770, Base gasket: 12191-KA5-308, Intake gasket: 14132-KAE-000, Intake gasket: 14133-430-306, Exhaust pipe gasket: 18291-430-306.
- SKU
- VIN-KTH28-00
- Brand
- Vintco
- Availability
- Out of Stock
FULL DESCRIPTION
VintCo Top End Piston Kit - Standard 88.92mm
Revitalize your motorcycle's engine with the VintCo Top End Piston Kit. This comprehensive kit is designed for straightforward top end service, offering a cost-effective solution for rebuilding your engine.
Key Features:
- Complete top end rebuild set for a hassle-free service.
- Includes piston, rings, wrist pin, and clips for a full piston replacement.
- Comes with a high-quality wrist pin bearing.
- Features a full top-end gasket kit, including head gasket, base gasket, intake gaskets, and exhaust pipe gasket.
- Engineered with modern materials and manufacturing techniques for reliable performance.
- MOS2 coated piston for optimal break-in.
- Forged piston construction for durability.
- Made in Germany to exacting standards.
Specifications:
- Standard Piston Size: 88.92 mm
- Piston Clearance: 0.08 mm
