UNIVERSAL LED SPOT LIGHT BAR WIRING LOOM, FUSE / RELAY / CONNECTORS / SWITCH
LED Light Bar Wiring Harness Kit includes a fused relay, on/off switch with indicator light, and battery connectors. This universal wire harness is compatible with most automotive LED work lights and can connect up to two lights simultaneously. Features a safety blade fuse. Certification: UL approved. Main Material: Wire rod, relay, switch, fuse. Wire length: 6.56ft / 2m. Main Wire Core: 16AWG. Subordinate Wire Core: 18AWG. Voltage: 12V. Current: 40A. Fuse Ampere Rating: 30A. Maximum Power Handling Capacity: 200 Watts when two lamps are connected in parallel.
- SKU
- 44-1551.WK
- Brand
- No Brand
- Availability
- In Stock (43)
FULL DESCRIPTION
Universal LED Light Bar Wiring Harness Kit
This universal wiring harness kit is designed for automotive LED work lights, offering a convenient and safe way to connect and control up to two light bars simultaneously. The kit includes all essential components for a complete installation, ensuring reliable performance and ease of use.
Key Features:
- Dual Light Capability: Designed to power two LED lamps at the same time, providing enhanced illumination.
- Integrated Control: Features an ON/OFF indicator light switch for convenient control of both connected LED lamps.
- Safety First: Includes a safety blade fuse to protect your electrical system.

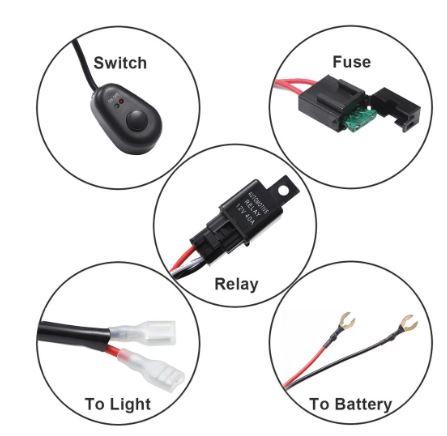

- Complete Kit: Comes with a relay, battery connectors, and an ON/OFF switch for a full setup.
- Durable Construction: Made with high-quality wire rod, relay, switch, and fuse for longevity.
- Universal Compatibility: Suitable for most automotive LED work lights.
Specifications:
- Certification: UL Approved
- Main Material: Wire rod, relay, switch, fuse
- Wire Harness Length: Approximately 2 meters (6.56 ft)
- Main Wire Core Gauge: 16AWG
- Subordinate Wire Core Gauge: 18AWG
- Operating Voltage: 12V
- Maximum Current Rating: 40A
- Fuse Ampere Rating: 30A
- Maximum Power Handling Capacity: 200 Watts (when two lamps are connected in parallel)
