CONNECTING ROD 01-02 YZF250, HOT RODS 8618
Heavy-duty connecting rod kit designed as a high-quality replacement. Manufactured from premium materials and engineered for superior strength and performance, this kit ensures durability under demanding conditions. The advanced design minimizes high-rpm bearing race distortion, and precise construction delivers reliable operation. Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional durability. Side scalloping and vent slots reduce high-rpm bearing race distortion. Double-forged construction improves grain flow and ensures dimensional consistency. Shot-peened and double-honed rods offer superior strength under heavy loads. Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing. Silver-coated thrust washers and crank pin bearings for improved lubricity. Big End Bearing (mm): 30x38x17.8, Big End Bore (mm): 38.00, Big End Width (mm): 17.97, Center to Center (mm): 93.50, Pin Diameter (mm): 30.00, Pin Length (mm): 54.80, Small End Bearing (mm): Bushing, Small End Bore (mm): 16.00, Small End Width (mm): 14.95. Cross-Reference OEM Part Numbers: YAMAHA: 5NL-11651-00-00, 5NL-11651-10-00. Part Number: 56-873.HR. Manufacturer: Hot Rods.
- SKU
- 56-873.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
FULL DESCRIPTION

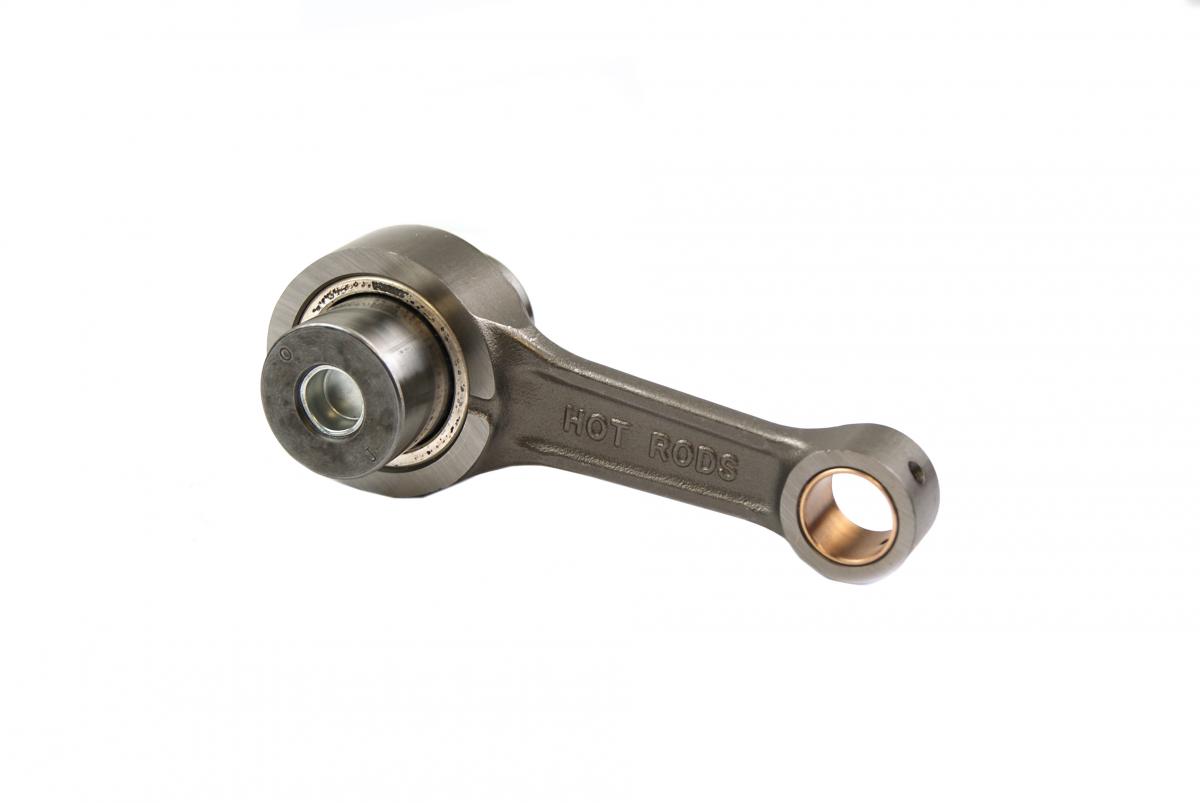

Hot Rods Connecting Rod for Yamaha YZF250
This heavy-duty connecting rod kit is engineered as a high-quality replacement part for the Yamaha YZF250. Manufactured from premium materials, it is designed for superior strength and performance, ensuring durability even under demanding riding conditions. The advanced design minimizes high-rpm bearing race distortion, and precise construction delivers reliable operation for your motorcycle.
Key Features:

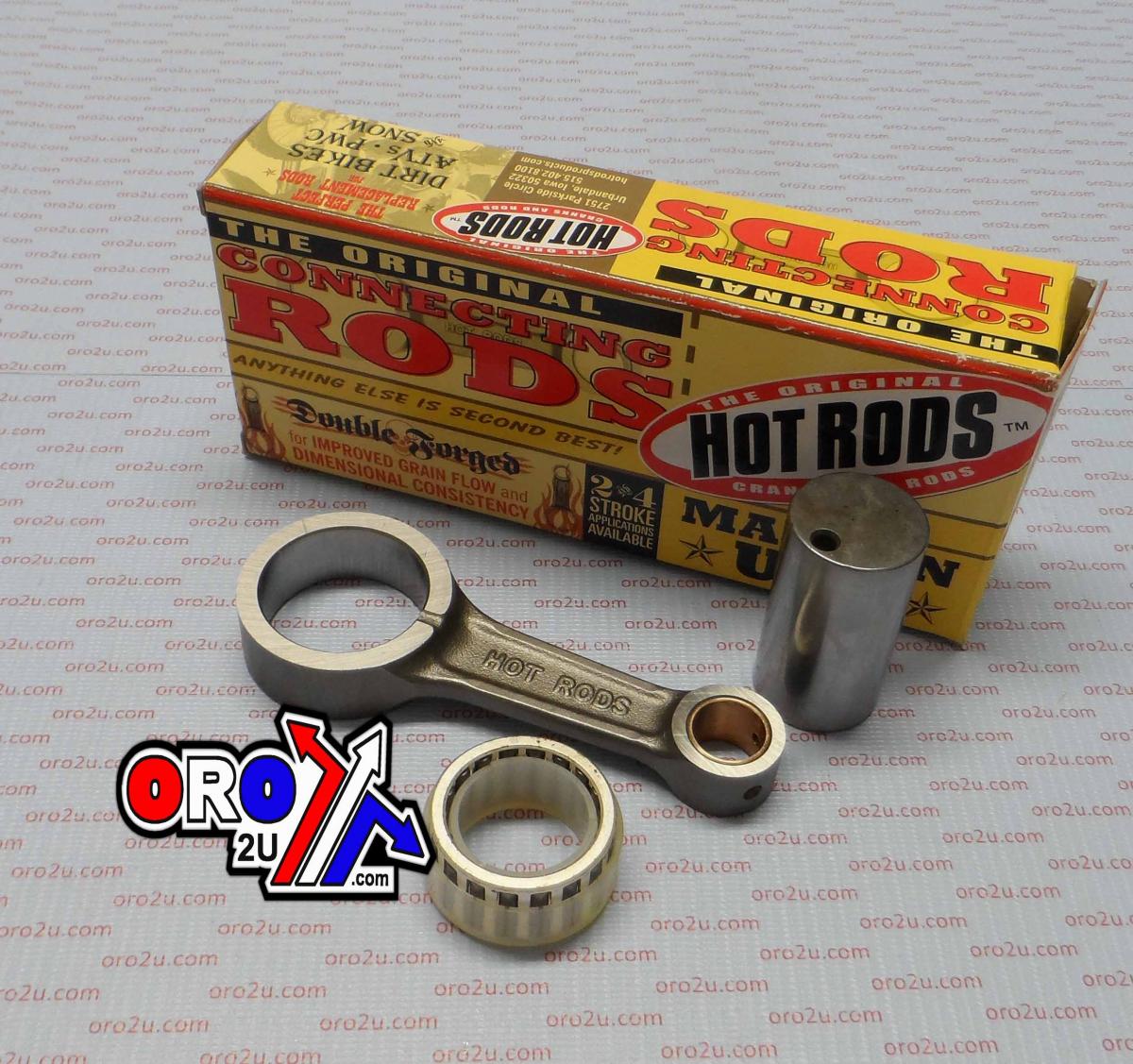

- Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
- Constructed from hot-rolled ASTM 4115 steel.
- Case-hardened to 58-62 Rc for exceptional durability.
- Features side scalloping and vent slots to reduce high-rpm bearing race distortion.
- Double-forged construction enhances grain flow and ensures dimensional consistency.
- Shot-peened and double-honed rods offer superior strength under heavy loads.
- Double-drilled small ends improve lubrication and cooling of the wrist pin bearing.
- Includes silver-coated thrust washers and crank pin bearings for improved lubricity.
Technical Specifications:
- Big End Bearing (mm): 30x38x17.8
- Big End Bore (mm): 38.00
- Big End Width (mm): 17.97
- Center to Center (mm): 93.50
- Pin Diameter (mm): 30.00
- Pin Length (mm): 54.80
- Small End Bearing Type: Bushing
- Small End Bore (mm): 16.00
- Small End Width (mm): 14.95
