CONNECTING ROD 06-14 YFM700, HOTROD 8651 YAMAHA ATV
Hot Rods Connecting Rod Kit 8651 is a heavy-duty OE-quality replacement manufactured in the USA with precision engineering. It is built to deliver superior performance and reliability, even under high-stress conditions and includes all components needed for installation. The kit is compatible with both Hot Rods and OE crankshafts. Features include certified 8620 AISI steel construction for exceptional strength and durability, side scalloping and vent slots on the big end to reduce high-rpm bearing race distortion, crankpins crafted from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc, advanced caged needle roller bearing designs for longevity at high rpm, and bronze phosphor and silver-coated thrust washers for enhanced lubricity. The complete kit includes connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers. Big End Bearing is 40x50x21.73 mm, Big End Bore is 50.00 mm, Big End Width is 21.95 mm, Center to Center is 135.00 mm, Pin Diameter is 34.00 mm, and Pin Length is 63.60 mm. This kit crosses references Yamaha OEM part number 1S3-11651-00-00 and ProX part number 03.2706. Part Number: 8651.
- SKU
- 56-276.HR
- Brand
- Hot Rods
- Availability
- In Stock (4)
FULL DESCRIPTION
Hot Rods Connecting Rod Kit for Yamaha ATVs
This Hot Rods Connecting Rod Kit is a high-performance, OE-quality replacement part designed to enhance the reliability and power of your Yamaha ATV. Precision manufactured in the USA, this kit is engineered to withstand demanding operating conditions and offers superior performance. It is designed for direct installation and works seamlessly with both Hot Rods and original equipment manufacturer (OEM) crankshafts.
Key Features:
- Constructed from certified 8620 AISI steel, ensuring exceptional strength and long-lasting durability.
- Features side scalloping and vent slots on the big end to minimize bearing race distortion at high rotational speeds.
- Crankpins are forged from hot-rolled ASTM 4115 steel and case-hardened to a hardness of 58-62 Rc for increased resilience.
- Incorporates advanced caged needle roller bearing designs to promote longevity, especially during high-rpm operation.
- Equipped with silver-coated bronze phosphor thrust washers to improve lubrication and reduce friction.

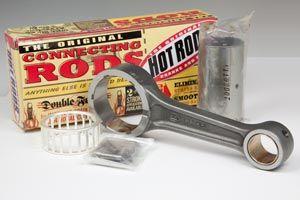

- The comprehensive kit includes all necessary components for a complete installation: connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers.
- Fully compatible with both Hot Rods and OEM crankshafts for versatile application.
Technical Specifications:
- Big End Bearing Dimensions: 40mm x 50mm x 21.73mm
- Big End Bore: 50.00mm
- Big End Width: 21.95mm
- Center to Center Length: 135.00mm
- Pin Diameter: 34.00mm
- Pin Length: 63.60mm
