CONNECTING ROD 84-18 KX 60/65, HOTRODS 8128
Hot Rods Connecting Rod Kit 56-114.HR. Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength. Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion. Double-forged rods improve grain flow and maintain dimensional accuracy. Shot-peened and double-honed for superior durability under extreme loads. Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing. Silver-coated thrust washers and crank pin bearings provide added lubricity. Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Technical Specifications: Big End Bore: 26.00 mm, Center to Center: 85.00 mm, Pin Diameter: 20.00 mm, Pin Length: 45.80 mm, Small End Bore: 16.00 mm, Washer Thickness: 1.00 mm. Cross-Reference OEM Part Numbers: Kawasaki: 13032-1246, 13044-5024. Suzuki: K1303-21246. Manufacturer: Hot Rods. Weight: 246 grams.
- SKU
- 56-114.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
FULL DESCRIPTION
Hot Rods Connecting Rod Kit for Kawasaki and Suzuki
Upgrade your motorcycle's performance with this high-performance Hot Rods connecting rod kit. Engineered for exceptional strength, durability, and precision, this kit is designed to withstand heavy loads and demanding riding conditions.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength.
- Advanced design includes side scalloping and vent slots to minimize bearing race distortion at high RPMs.
- Double-forged rods ensure improved grain flow and maintain precise dimensions.
- Shot-peened and double-honed surfaces enhance durability under extreme stress.
- Small ends are double-drilled to provide optimal lubrication and cooling for the wrist pin bearing.
- Includes silver-coated thrust washers and crank pin bearings for increased lubricity.

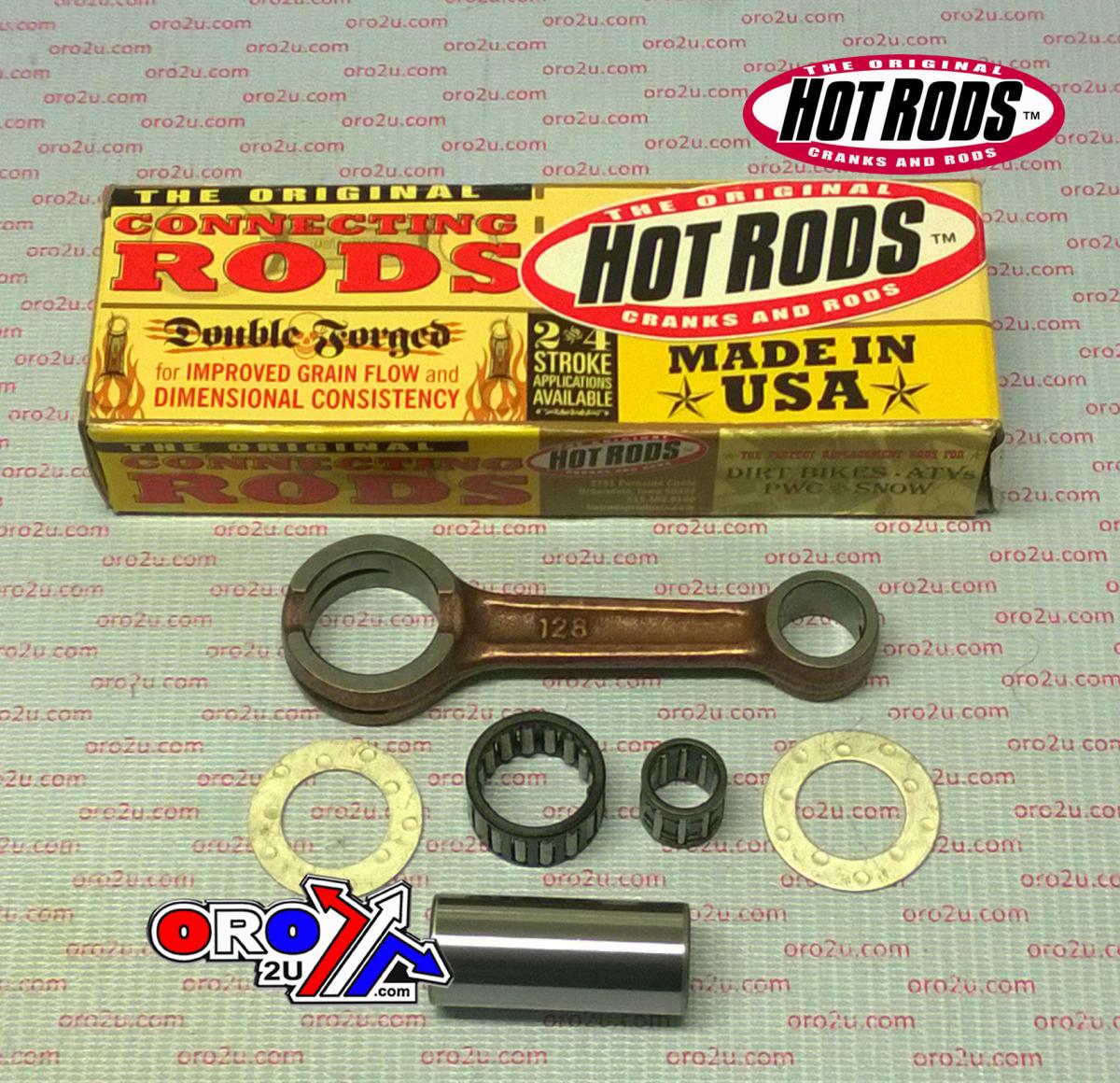

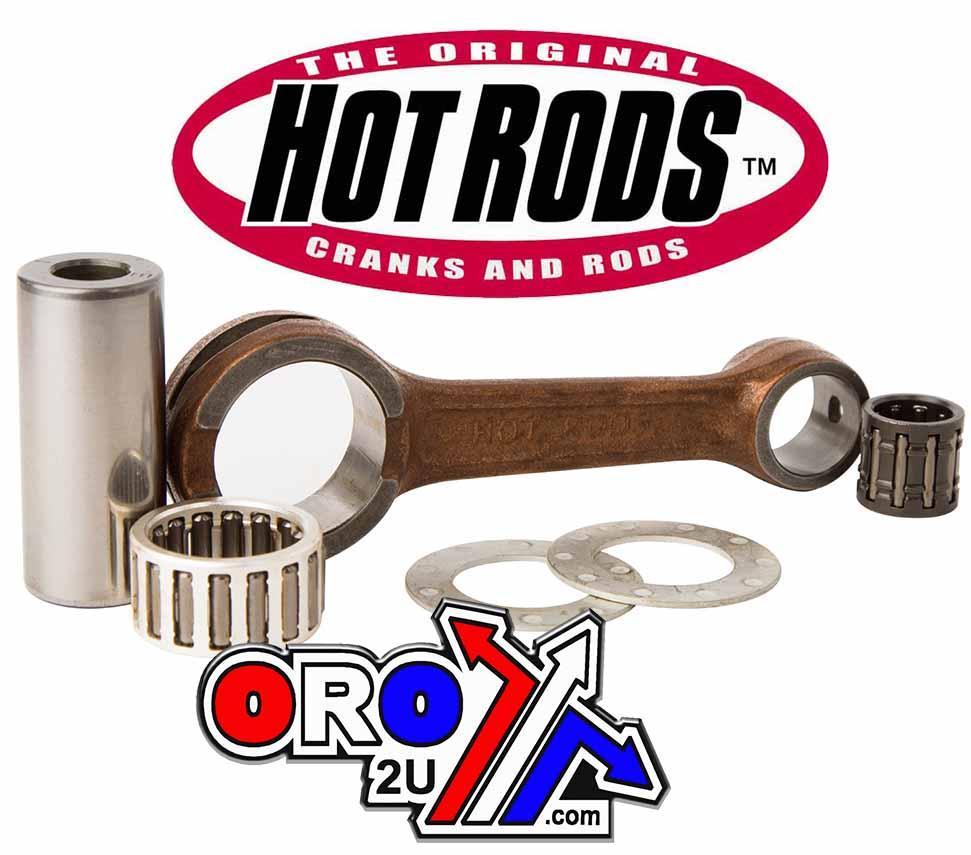

- Complete kit contains the rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
Technical Specifications:
- Big End Bore: 26.00 mm
- Center to Center Length: 85.00 mm
- Pin Diameter: 20.00 mm
- Pin Length: 45.80 mm
- Small End Bore: 16.00 mm
- Washer Thickness: 1.00 mm
OEM Part Number Cross-Reference:
- Kawasaki: 13032-1246, 13044-5024
- Suzuki: K1303-21246
