CONNECTING ROD 87-06 BANSHEE, BRONCO AT-07306 YAMAHA ATV
Heavy-duty OE replacement connecting rods. Certified Chorme alloy steel provides superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if needed. Fully compatible with aftermarket and OE crankshafts. Material SNCM220. Center To Center (mm): 110. Small End Bearing (mm): 16x21x22.5. Small End Bore (mm): 21. Small End Width (mm): 18. Big End Bearing (mm): 22x29x17. Big End Bore (mm): 29. Big End Width (mm): 17. Big End Pin Diameter (mm): 22. Big End Pin Length (mm): 53. Washer Thickness (mm): 1.00. Cross reference numbers: VESRAH VA-2008, 29L-11651-00-00, HOTROD 8121.
- SKU
- 56-196.DR
- Brand
- Namura Technologies
- Availability
- In Stock (17)
FULL DESCRIPTION
Bronco AT-97306 Connecting Rod Rebuild Kit for Yamaha Banshee
This heavy-duty OE replacement connecting rod kit is designed for high-performance and longevity. Crafted from certified chrome alloy steel, it offers superior strength and durability for your Yamaha Banshee engine.
Key Features:
- Superior Strength: Made from certified chrome alloy steel for exceptional durability.
- High-Quality Crankpins: Manufactured from hot-rolled ASTM steel and case hardened for extended wear life.
- Advanced Bearing Design: Utilizes the latest caged needle roller bearing designs for high RPM longevity.
- Durable Thrust Washers: Constructed from bronze phosphor and silver coated for optimal performance.

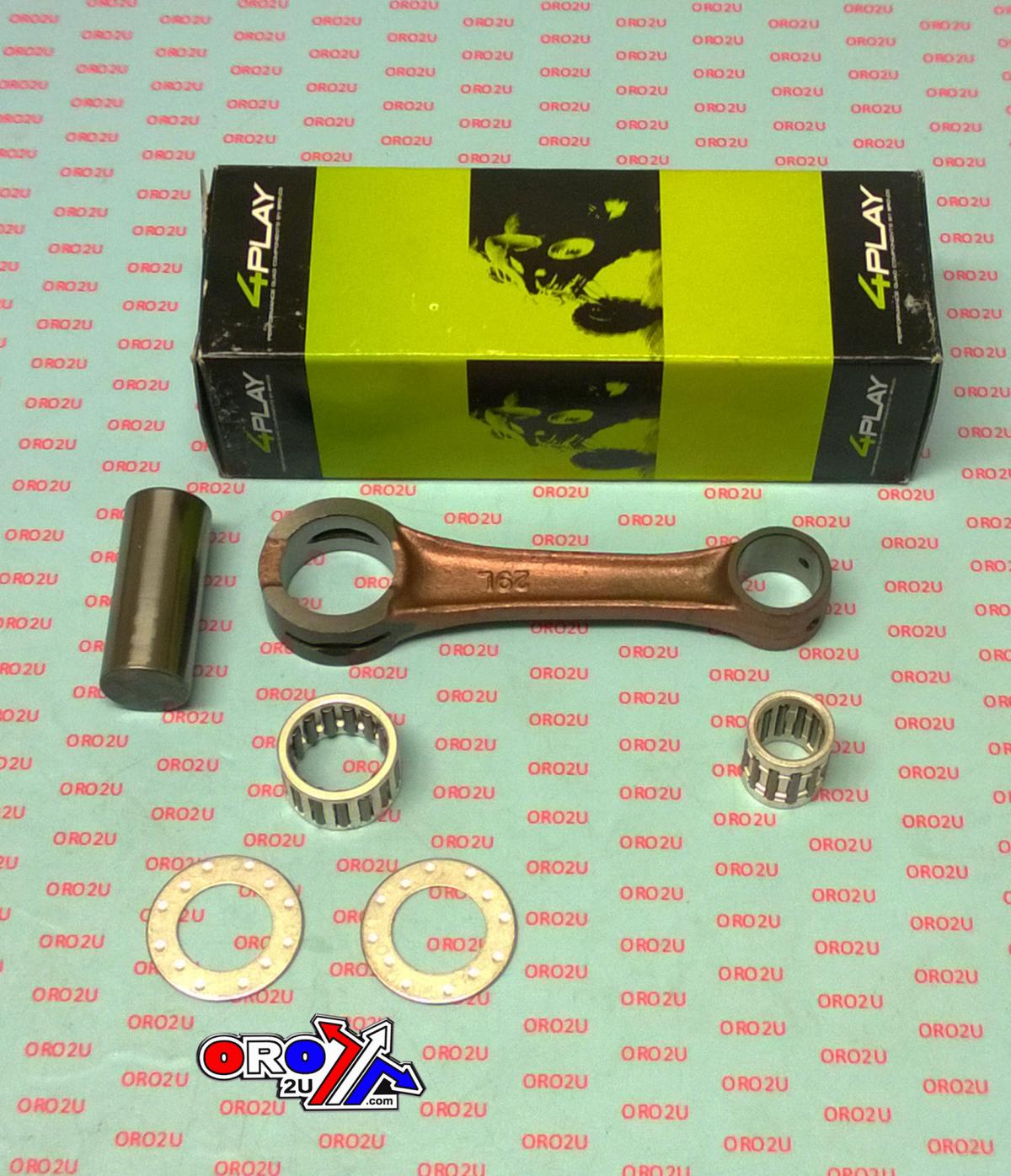

- Complete Kit: Sold as a complete assembly including the rod, crankpin, crankpin bearing, top end bearing, and thrust washers.
- OE and Aftermarket Compatibility: Fully compatible with both original equipment and aftermarket crankshafts.
- Material: SNCM220.

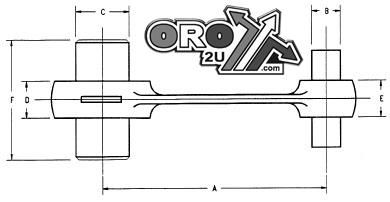

Specifications:
- Center To Center (mm): 110
- Small End Bearing (mm): 16x21x22.5
- Small End Bore (mm): 21
- Small End Width (mm): 18
- Big End Bearing (mm): 22x29x17
- Big End Bore (mm): 29
- Big End Width (mm): 17
- Big End Pin Diameter (mm): 22
- Big End Pin Length (mm): 53
- Washer Thickness (mm): 1.00
