CONNECTING ROD 87-06 BANSHEE, HOTROD 8121 YAMAHA ATV
High-quality connecting rod kit made from durable hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc. These rods are engineered to withstand high-rpm performance demands and feature advanced side scalloping and vent slots for reduced bearing race distortion. The double-forged construction enhances grain flow and dimensional stability, while a shot-peened and double-honed finish increases strength under heavy loads. Double-drilled small ends improve lubrication and cooling of the wrist pin bearing. Silver-coated thrust washers and crank pin bearings provide added lubricity. Supplied as a complete kit, it includes the rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Big End Bearing: 22x29x17 mm. Big End Bore: 29.00 mm. Big End Width: 16.98 mm. Center to Center: 110.00 mm. Pin Diameter: 22.00 mm. Pin Length: 52.70 mm. Small End Bearing: 16x21x22.5 mm. Small End Bore: 21.00 mm. Small End Width: 17.98 mm. Cross-reference OEM Part Numbers: Yamaha 29L-11651-00-00. Part Number: 8121. Manufacturer: Hot Rods.
- SKU
- 56-196.HR
- Brand
- Hot Rods
- Availability
- In Stock (2)
FULL DESCRIPTION

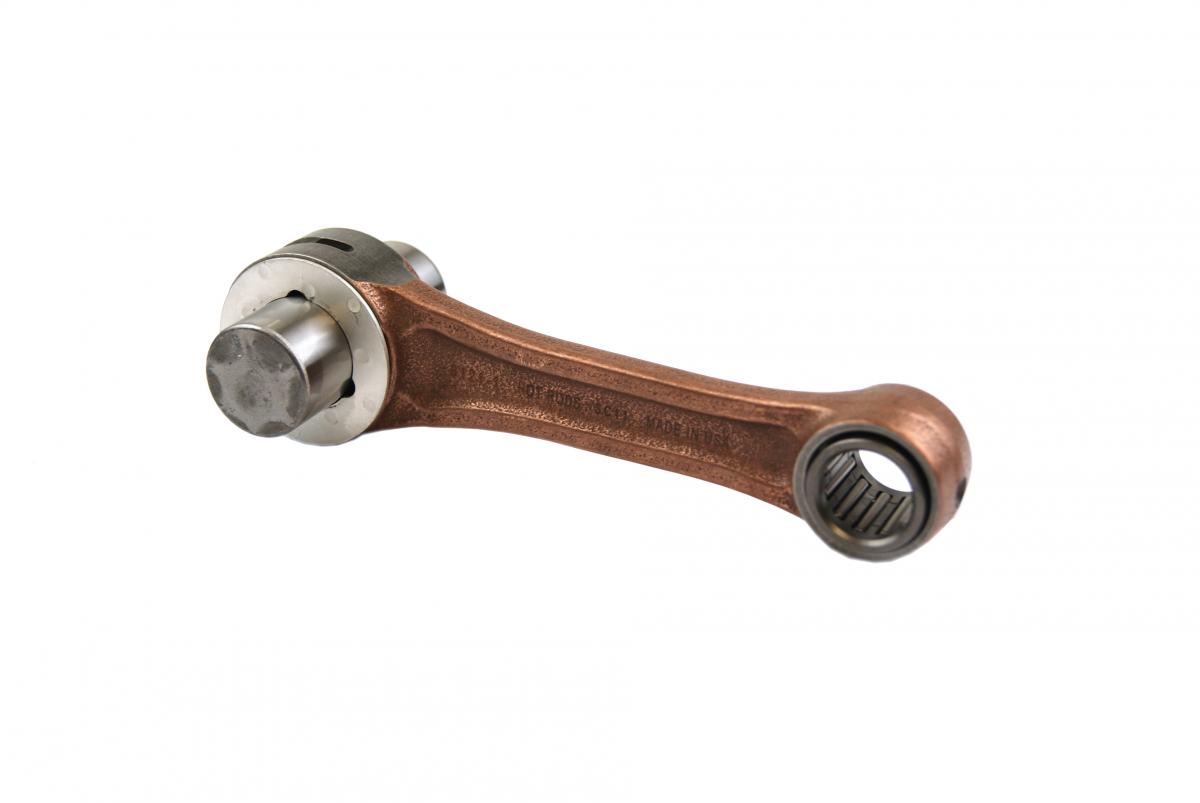

Hot Rods Connecting Rod Kit for Yamaha YFZ350 Banshee
Upgrade your Yamaha YFZ350 Banshee with this high-performance connecting rod kit from Hot Rods. Engineered for durability and enhanced performance, this kit is constructed from premium materials and features advanced design elements to withstand the rigors of high-RPM operation. Ensure your engine performs at its peak with reliable and robust components.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel for exceptional strength and durability.
- Case-hardened to 58-62 Rc for superior wear resistance.
- Features advanced side scalloping and vent slots to minimize bearing race distortion at high RPMs.
- Double-forged construction ensures consistent dimensional stability and improved grain flow.
- Shot-peened and double-honed finish increases strength and load-bearing capacity.
- Double-drilled small ends provide optimal lubrication and cooling for the wrist pin bearing.
- Includes silver-coated thrust washers and crank pin bearings for enhanced lubricity and smoother operation.

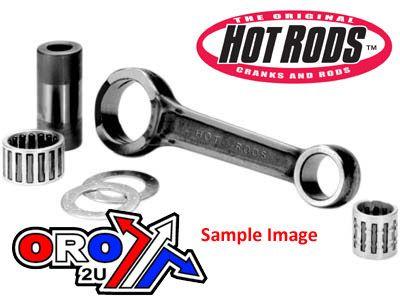

- Supplied as a comprehensive kit, including the connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers, for a complete installation.
Technical Specifications:
- Big End Bearing: 22mm x 29mm x 17mm
- Big End Bore: 29.00mm
- Big End Width: 16.98mm
- Center to Center Length: 110.00mm
- Crank Pin Diameter: 22.00mm
- Crank Pin Length: 52.70mm
- Small End Bearing: 16mm x 21mm x 22.5mm
- Small End Bore: 21.00mm
- Small End Width: 17.98mm
Part Number: 8121
Manufacturer: Hot Rods
