CONNECTING ROD 92-93 KX125, HOT RODS 8102 79-89 KX125
High-quality replacement connecting rod kit made from hot-rolled ASTM 4115 material and case-hardened to 58-62 Rc for strength and longevity. Advanced design features such as side scalloping and vent slots reduce high RPM bearing race distortion, while double-forged construction enhances dimensional consistency. Shot-peening and double-honing strengthen the rod under heavy loads. Small ends are double-drilled to improve lubrication and cooling, critical for wrist pin bearing performance. Thrust washers and crank pin bearings are silver-coated for enhanced lubricity. The kit includes a rod, crank pin, crank pin bearing, top-end bearing, and thrust washers. Center-to-Center Length: 106.00 mm. Pin Diameter: 22.00 mm. Pin Length: 50.90 mm. Big End Bore: 29.00 mm. Small End Bore: 21.00 mm. Washer Thickness: 1.00 mm. Part Number: 56-896.HR. Manufacturer: Hot Rods.
- SKU
- 56-896.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
FULL DESCRIPTION

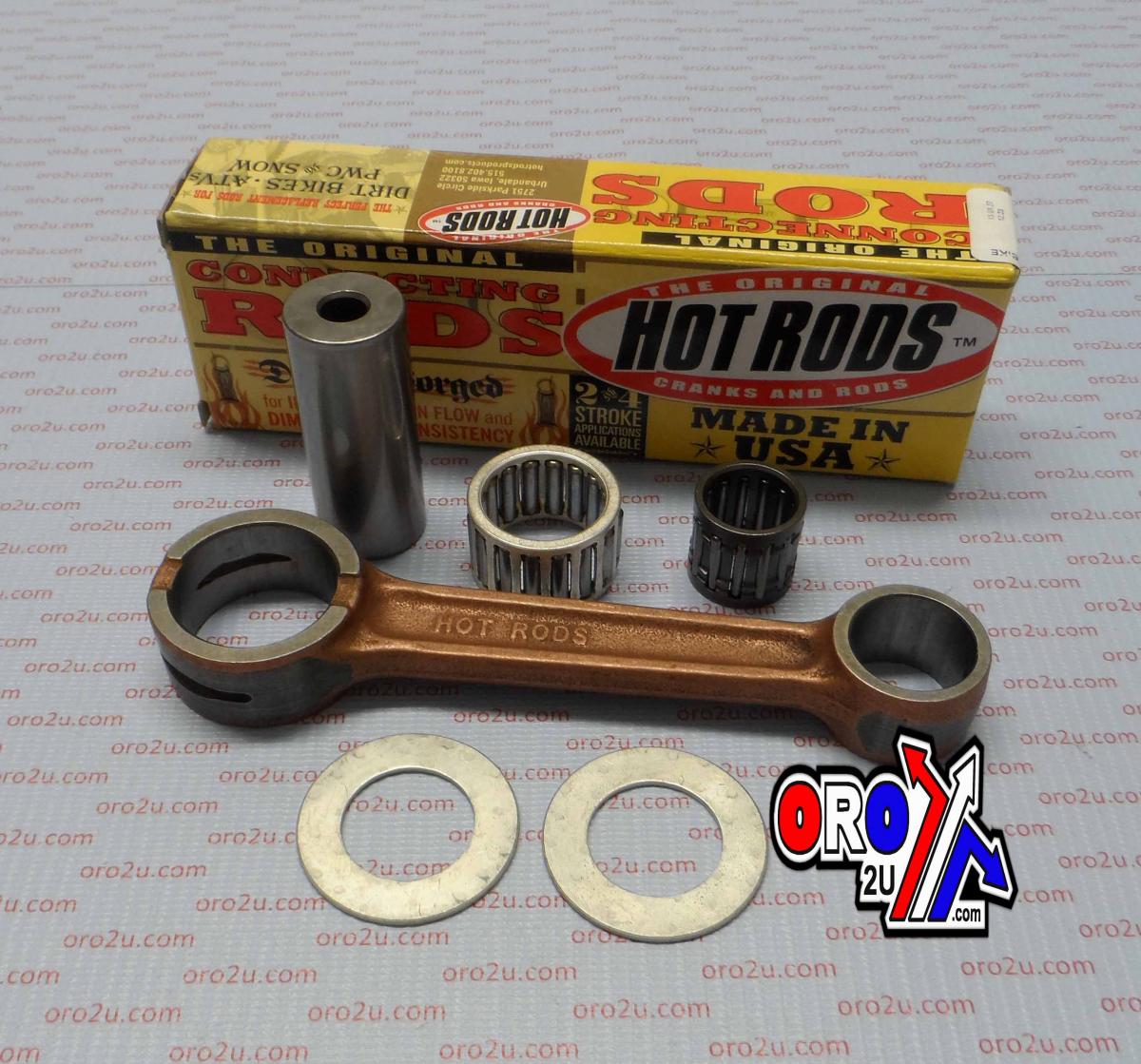

Hot Rods Connecting Rod Kit for Select Kawasaki Models
This high-quality replacement connecting rod kit is engineered for optimal performance and durability in specific Kawasaki motorcycle engines. Crafted from premium materials and subjected to rigorous manufacturing processes, this connecting rod ensures reliable operation and longevity for your motorcycle's engine.
Key Features:
- Advanced Material and Hardening: Constructed from hot-rolled ASTM 4115 material and case-hardened to a Rockwell hardness of 58-62 Rc for exceptional strength and wear resistance.
- Optimized Design for High RPM: Features like side scalloping and vent slots are incorporated to minimize bearing race distortion at high engine speeds, maintaining consistent performance.
- Enhanced Durability: Double-forged construction improves grain flow and dimensional accuracy. The rod is further strengthened through shot-peening and double-honing processes to withstand heavy loads.
- Improved Lubrication and Cooling: The small end of the rod is double-drilled to enhance lubrication and cooling of the wrist pin bearing, crucial for smooth operation and extended bearing life.
- Superior Lubricity: Thrust washers and crank pin bearings are silver-coated, providing increased lubricity for reduced friction and improved component protection.
- Complete Kit: This comprehensive kit includes the connecting rod, crank pin, crank pin bearing, top-end bearing, and necessary thrust washers, offering a complete solution for your engine repair.
Specifications:
- Center-to-Center Length: 106.00 mm
- Pin Diameter: 22.00 mm
- Pin Length: 50.90 mm
- Big End Bore: 29.00 mm
- Small End Bore: 21.00 mm
- Washer Thickness: 1.00 mm
Manufacturer Information:
Manufactured by Hot Rods, a trusted name in high-performance engine components.
