CONNECTING ROD 99-08 TRX400EX, BRONCO AT-09250 HONDA ATV

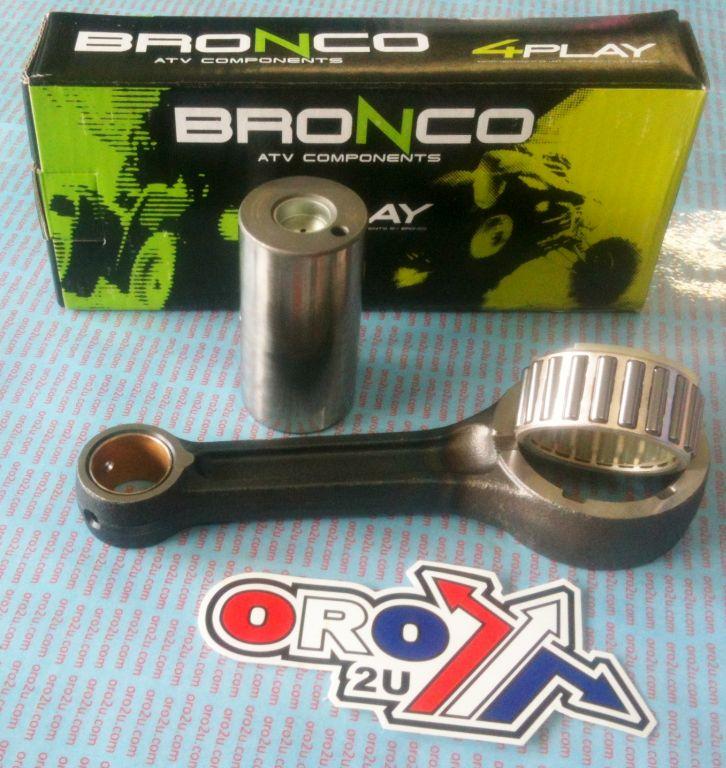

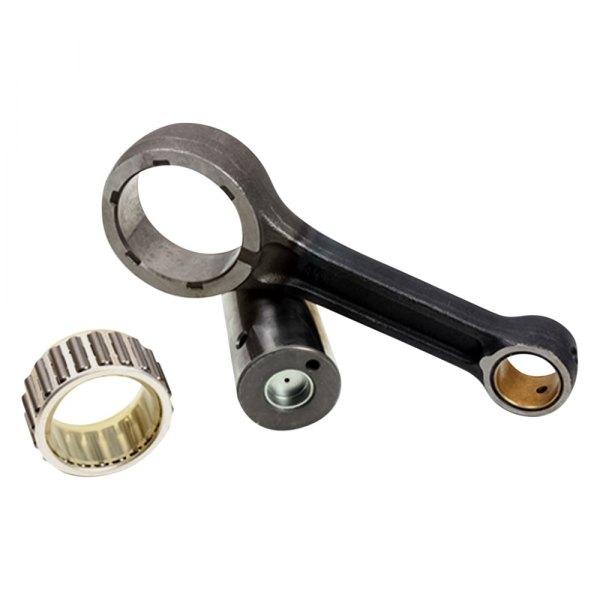

CONNECTING ROD REBUILD KIT BRONCO AT-09250 for HONDA ATV. Heavy-duty OE replacement connecting rods. Certified Chorme alloy steel provides superior strength. Crankpins manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if needed. Fully compatible with after market and OE crankshafts. Material SNCM220. Specifications: Center To Center 122.6 mm, Big End Bearing 34x43x20 mm, Big End Bore 43 mm, Big End Width 21 mm, Big End Pin Diameter 34 mm, Big End Pin Length 66.2 mm, Small End Bore 20 mm, Small End Width 19 mm. Part No. 56-189.DR. Cross reference numbers: PROX 03.1499, 13000-HN1-000, 13000-MBV-730. Manufacturer: Namura Technologies.
- SKU
- 56-189.DR
- Brand
- Namura Technologies
- Availability
- In Stock (1)
FULL DESCRIPTION
Connecting Rod Rebuild Kit for Honda ATVs
This is a heavy-duty OE replacement connecting rod kit designed for Honda ATVs. It offers superior strength and longevity for high-rpm performance.
Key Features:
- Superior Strength: Certified Chrome alloy steel construction provides exceptional durability.
- Hardened Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and case hardened for resilience.
- Advanced Bearing Design: Utilizes the latest caged needle roller bearing designs for extended high-rpm longevity.
- Bronze Thrust Washers: Silver-coated bronze phosphor thrust washers ensure smooth operation.
- Complete Kit: Sold as a complete assembly including the rod, crankpin, crankpin bearing, top end bearing, and applicable thrust washers.
- OE and Aftermarket Compatibility: Fully compatible with both original equipment and aftermarket crankshafts.
- Material: SNCM220.
Specifications:
- Center To Center: 122.6 mm
- Big End Bearing: 34x43x20 mm
- Big End Bore: 43 mm
- Big End Width: 21 mm
- Big End Pin Diameter: 34 mm
- Big End Pin Length: 66.2 mm
- Small End Bore: 20 mm
- Small End Width: 19 mm
Cross Reference Numbers:
- PROX 03.1499
- 13000-HN1-000
- 13000-MBV-730
