CONNECTING ROD KIT 83-06 KAWASAKI SUZUKI KFX KDX LT LT-A ALT JR 50 12161-07901 13032-S006
This connecting rod rebuild kit is designed for selected Kawasaki and Suzuki 50 cc ATV and mini bike engines, providing the internal components required when rebuilding or replacing the engine connecting rod assembly. The kit is supplied as a complete rod assembly set for use with compatible original equipment and aftermarket crankshafts, and includes the connecting rod, big end pin, big end bearing and small end bearing. Features OE replacement connecting rod kit. Designed for engine connecting rod rebuilds. Meets or exceeds OEM quality requirements. Suitable for use with compatible aftermarket and OE crankshafts. Uses a caged needle roller bearing design for high-rpm durability. Crankpin supplied for big end assembly. Supplied with big end and small end bearings. Material SNCM220 chrome alloy steel. Crankpin material hot-rolled ASTM steel. Crankpin finish case hardened. Thrust washer material phosphor bronze. Thrust washer finish silver coated. Centre to centre length 80 mm. Small end bearing 12 x 16 x 15.60 mm. Small end bore diameter 16 mm. Small end width 12 mm. Big end bearing 15 x 21 x 10 mm. Big end bore diameter 21 mm. Big end width 10 mm. Big end pin diameter 15 mm. Big end pin length 30.80 mm. Washer thickness None. Included components connecting rod, big end pin, big end bearing, small end bearing. Cross-Reference OEM Part Numbers 12161-07901, 13032-S006.
- SKU
- 56-248.DR
- Brand
- Dirt Racing
- Availability
- In Stock (28)
FULL DESCRIPTION

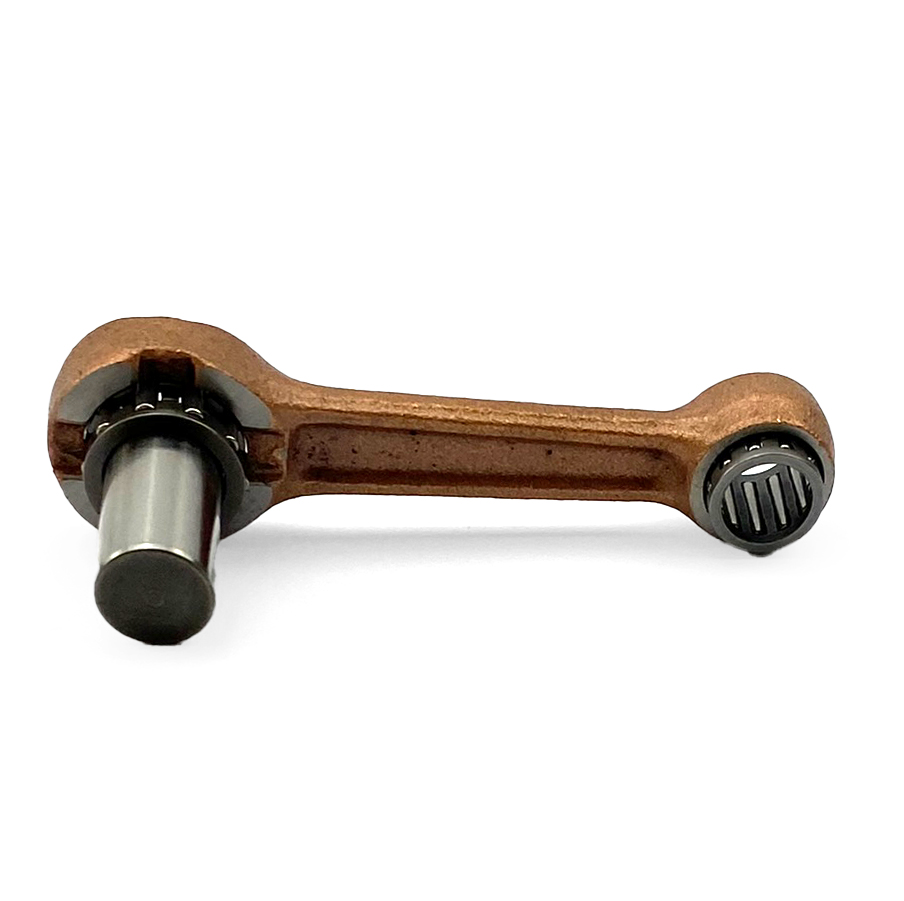

Connecting Rod Kit for Select Kawasaki and Suzuki 50cc Engines
This comprehensive connecting rod rebuild kit is specifically designed for select Kawasaki and Suzuki 50cc ATV and mini bike engines. It provides all the essential internal components needed for a successful engine connecting rod assembly rebuild or replacement. This kit is engineered to work seamlessly with compatible original equipment and aftermarket crankshafts.
Key Features:
- Direct OE replacement connecting rod kit.
- Ideal for engine connecting rod rebuilds and replacements.
- Meets or exceeds original equipment manufacturer quality standards.
- Designed for compatibility with both OE and aftermarket crankshafts.
- Features a caged needle roller bearing design for enhanced durability at high RPMs.
- Includes a crankpin for complete big end assembly.
- Comes supplied with both big end and small end bearings.
Specifications:
- Connecting Rod Material: SNCM220 chrome alloy steel
- Crankpin Material: Hot-rolled ASTM steel
- Crankpin Finish: Case hardened
- Thrust Washer Material: Phosphor bronze
- Thrust Washer Finish: Silver coated
- Center to Center Length: 80 mm
- Small End Bearing Dimensions: 12 mm (width) x 16 mm (bore diameter) x 15.60 mm (length)
- Big End Bearing Dimensions: 10 mm (width) x 21 mm (bore diameter) x 15 x 21 mm (outer dimensions)
- Big End Pin Diameter: 15 mm
- Big End Pin Length: 30.80 mm
- Included Components: Connecting rod, big end pin, big end bearing, small end bearing.
Cross-Reference OEM Part Numbers:
- 12161-07901
- 13032-S006
