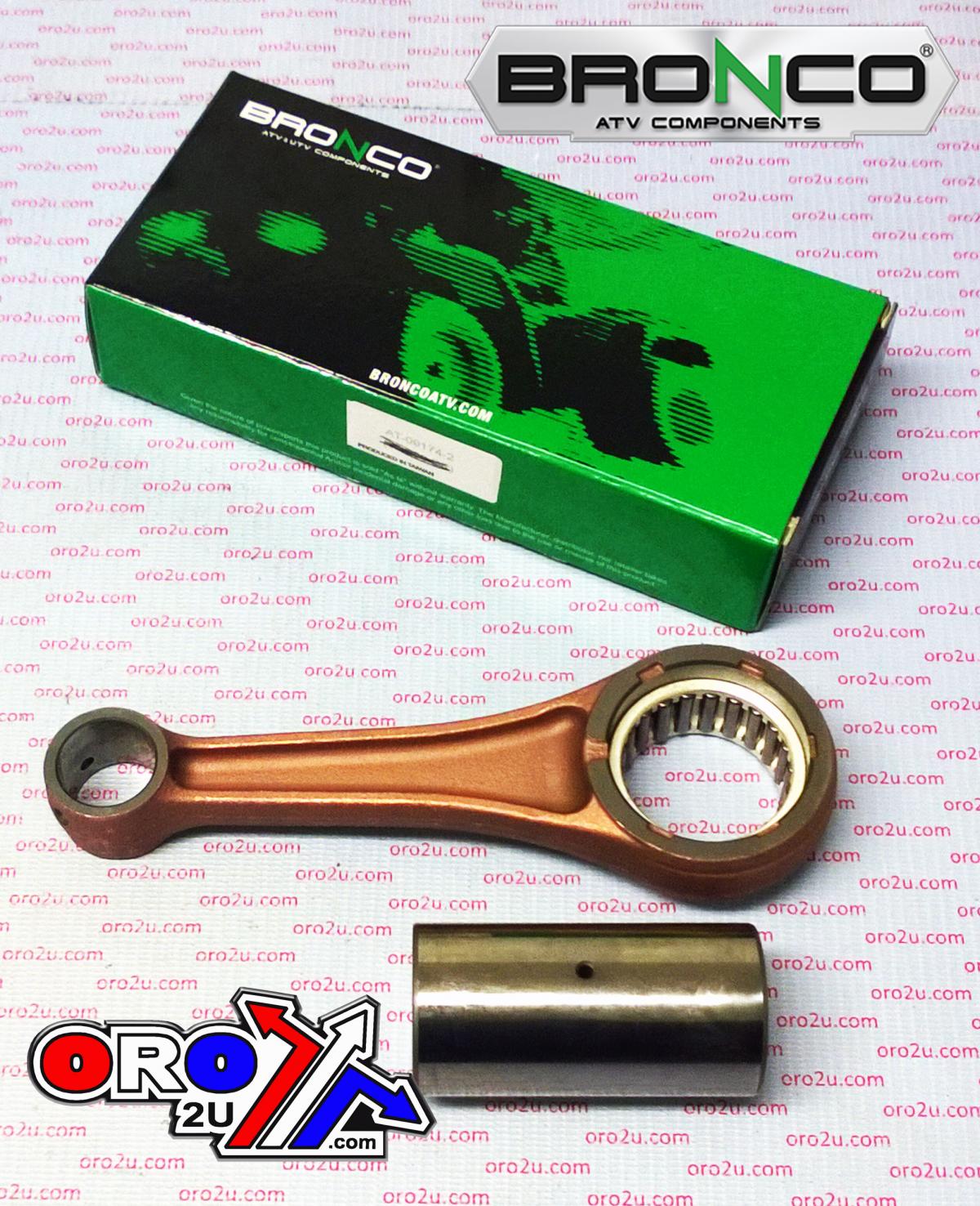

CONNECTING ROD KIT YFM660R 02-, BRONCO AT-09174-2
BRONCO AT-09174-2 Connecting Rod Rebuild Kit. Heavy-duty OE replacement connecting rods made from certified Chrome alloy steel for superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Utilizes the latest in caged needle roller bearing designs for high rpm longevity. Thrust washers are manufactured from bronze phosphor and are silver coated. Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers. Fully compatible with aftermarket and OE crankshafts. Material SNCM220. SIZE: Centre to Centre 136.50mm, Small End Bearing None, Small End Bore Ø 22mm, Small End Width 22mm, Big End Bearing 37x45x21.80, Big End Bore Ø 45mm, Big End Width 22mm, Big End Pin Ø 37mm, Big End Pin Length 73.90mm, Washer Thickness None. Cross reference numbers: 5LP-11651-00-00.
- SKU
- 56-207.DR
- Brand
- Namura Technologies
- Availability
- In Stock (2)
FULL DESCRIPTION
BRONCO Connecting Rod Rebuild Kit for Yamaha ATVs and UTVs
This BRONCO Connecting Rod Rebuild Kit (AT-09174-2) is designed as a heavy-duty OE replacement for select Yamaha ATV and UTV models. It provides the essential components to restore or upgrade your connecting rod assembly for enhanced performance and longevity.
Key Features:
- Superior Strength: Constructed from certified Chrome alloy steel (SNCM220) for exceptional durability.
- Hardened Crankpins: Crankpins are manufactured from hot-rolled ASTM steel and case hardened for increased wear resistance.
- High RPM Longevity: Utilizes the latest caged needle roller bearing designs to ensure reliability during high RPM operation.
- Durable Thrust Washers: Made from bronze phosphor and silver coated for reduced friction and extended life.

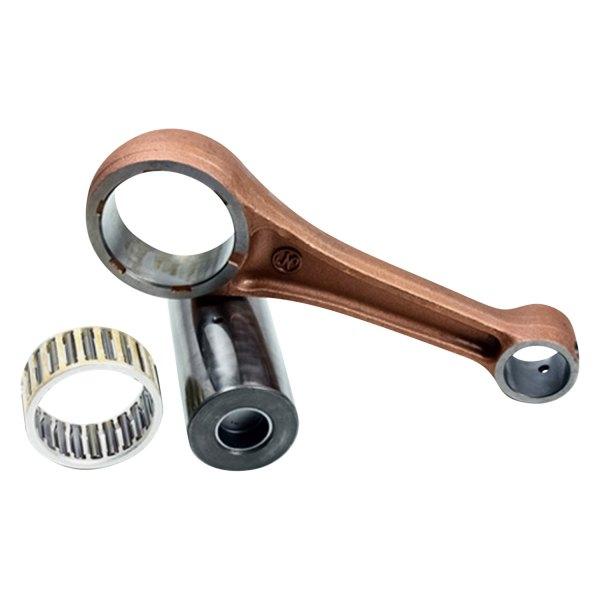

- Complete Assembly: Each kit includes the rod, crankpin, crankpin bearing, top end bearing, and necessary thrust washers.
- OE and Aftermarket Compatibility: Fully compatible with both original equipment and aftermarket crankshafts.
Specifications:
- Centre to Centre: 136.50 mm
- Small End Bearing: None
- Small End Bore Diameter: 22 mm
- Small End Width: 22 mm
- Big End Bearing: 37x45x21.80 mm
- Big End Bore Diameter: 45 mm
- Big End Width: 22 mm
- Big End Pin Diameter: 37 mm
- Big End Pin Length: 73.90 mm
- Washer Thickness: None
