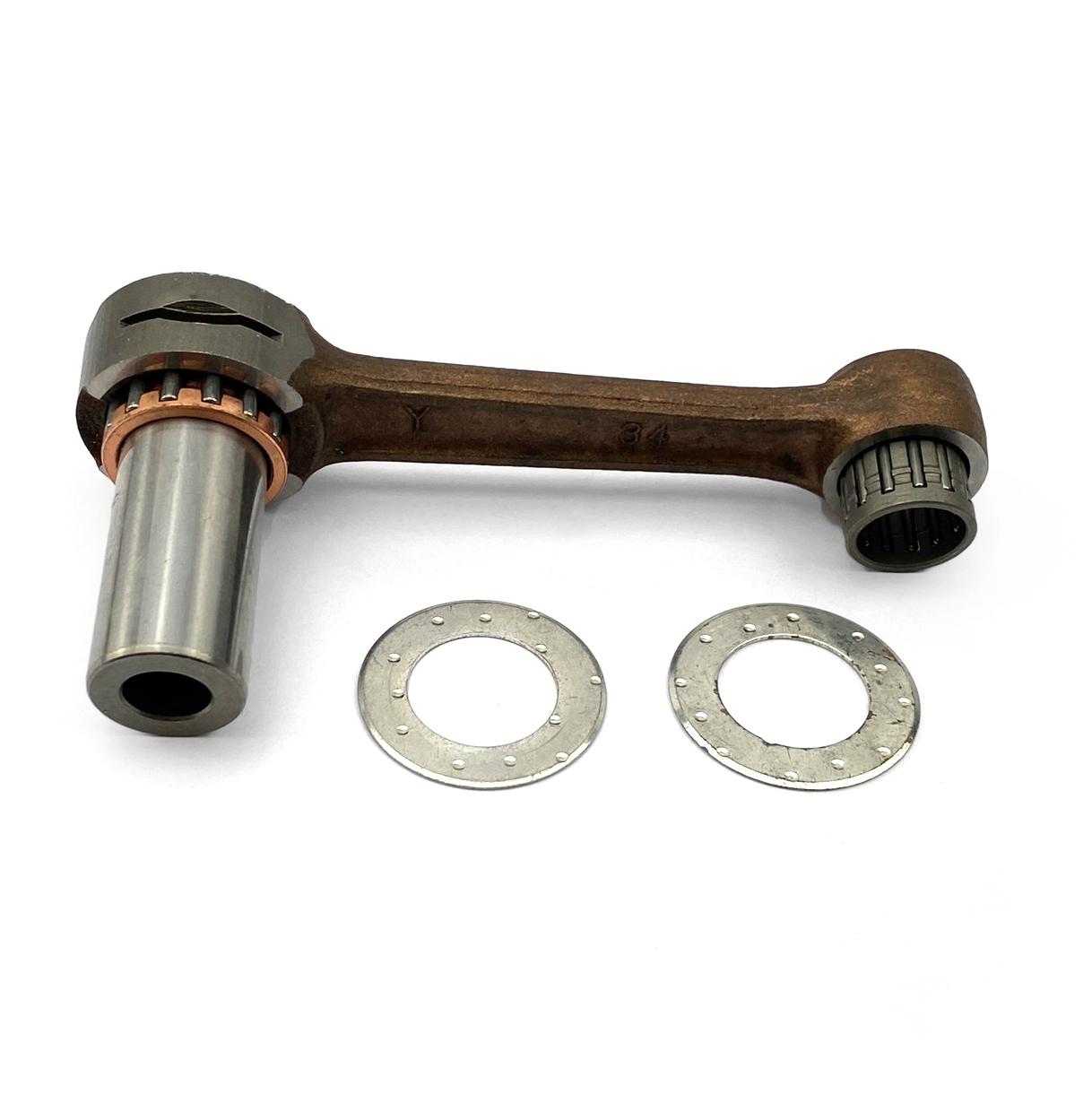

CONNECTING ROD REBUILD KIT YAMAHA DT RD 125 LC3 YPVS 1GU-11651-00-00
CONNECTING ROD REBUILD KIT for YAMAHA RD125LC3 YPVS and DT125. Centre to Centre measurement is 110mm. Small End Bearing dimensions are 16x20x19.50mm, with a Small End Bore of 20mm and Small End Width of 16mm. Big End Bearing dimensions are 22x28x15.50mm, with a Big End Bore of 28mm, Big End Width of 16mm, and Big End Pin Ø of 22mm. Big End Pin Length is 54mm. Washer Thickness is 22x39x1mm. Overall outside length is 141.50mm. This kit features heavy-duty OE replacement connecting rods made from certified chrome alloy steel for superior strength. Crankpins are manufactured from hot-rolled ASTM steel and case hardened. Psychic Rods utilize caged needle roller bearing designs for high RPM longevity. Thrust washers are made from bronze phosphor and are silver coated. The rod assembly includes the rod, crankpin, crankpin bearing, top end bearing, and thrust washers. Fully compatible with after-market and OE crankshafts. Manufactured to exacting standards to ensure crankshaft rebuild confidence, meeting or exceeding OEM quality. This is a direct OEM replacement. Cross reference numbers: ROD 1GU-11651-00-00, PIN 3N5-11681-00-00, 36F-11681-00-00, WASHER 902092225700, 90209-22292-00, BEARING 93310-522J0-00, S END BEARING 93310-316117-00, 93310316D500.
- SKU
- 56-899
- Brand
- Factory Image Racing
- Availability
- In Stock (2)
FULL DESCRIPTION
Connecting Rod Rebuild Kit for Yamaha DT and RD Models
This connecting rod rebuild kit is designed to be a high-quality replacement part for Yamaha DT and RD series motorcycles. It meets or exceeds OEM quality and offers excellent value for money, providing a direct OE replacement to ensure your engine can be rebuilt with confidence.
Key Features:
- Heavy-Duty Construction: Built with certified chrome alloy steel for superior strength and longevity.
- Precision Crankpins: Manufactured from hot-rolled ASTM steel and case hardened for durability.
- Advanced Bearing Design: Utilizes the latest caged needle roller bearing technology for high RPM performance.
- High-Quality Thrust Washers: Made from bronze phosphor with a silver coating for enhanced wear resistance.
- Complete Kit: Includes the connecting rod, crankpin, big end bearing, small end bearing, and thrust washers where applicable.
- OE Compatibility: Fully compatible with both aftermarket and original equipment (OE) crankshafts.
- Dimensions:
- Centre to Centre: 110 mm
- Small End Bearing: 16x20x19.50 mm
- Small End Bore Diameter: 20 mm
- Small End Width: 16 mm
- Big End Bearing: 22x28x15.50 mm
- Big End Bore Diameter: 28 mm
- Big End Width: 16 mm
- Big End Pin Diameter: 22 mm
- Big End Pin Length: 54 mm
- Washer Thickness: 22x39x1 mm
- Overall Outside Length: 141.50 mm
Ensure your engine performs at its best with this reliable connecting rod rebuild kit.
