CONNECTING ROD RMZ450, HOTRODS 8647 RM-Z450
High-quality heavy-duty connecting rod kit. Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum reliability. Features advanced design with side scalloping and vent slots to minimize high RPM bearing race distortion. Double-forged rods for improved grain flow and consistent dimensions. Shot-peened and double-honed for enhanced strength under heavy loads. Double-drilled small ends for superior lubrication and cooling of the wrist pin bearing. Silver-coated thrust washers and crank pin bearings for reduced friction and increased lubricity. Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild. Big End Bore: 42.00 mm. Center to Center: 106.10 mm. Pin Diameter: 34.00 mm. Pin Length: 60.80 mm. Small End Bore: 19.00 mm. Part Number: 56-136.HR. Manufacturer: Hot Rods.
- SKU
- 56-136.HR
- Brand
- Hot Rods
- Availability
- In Stock (1)
FULL DESCRIPTION
This high-quality, heavy-duty connecting rod kit is engineered for demanding conditions, offering exceptional durability, optimal performance, and superior strength for your motorcycle.
Key Features:
- Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum reliability.
- Features an advanced design with side scalloping and vent slots to minimize high RPM bearing race distortion.
- Double-forged rods enhance grain flow and ensure consistent dimensions for improved performance.
- Shot-peened and double-honed for increased strength, especially under heavy loads.
- Double-drilled small ends provide superior lubrication and cooling for the wrist pin bearing.
- Includes silver-coated thrust washers and crank pin bearings to reduce friction and increase lubricity.

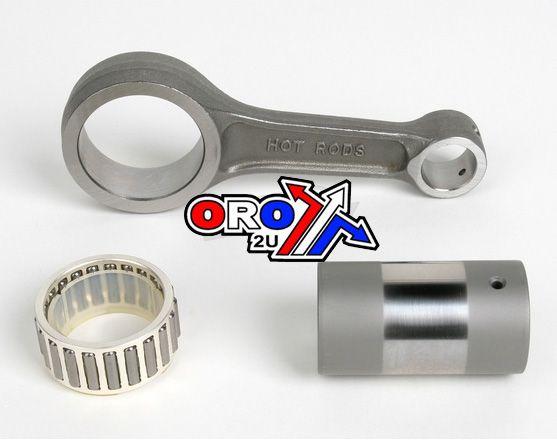

- This comprehensive kit includes the rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild.
Technical Specifications:
- Big End Bore (mm): 42.00
- Center to Center (mm): 106.10
- Pin Diameter (mm): 34.00
- Pin Length (mm): 60.80
- Small End Bore (mm): 19.00
Cross-Reference OEM Part Numbers:
- ATHENA P40321030
- 12210-10H10 / 12210-10H11
- 09263-30060-0B0
- 12161-49H00-0B0
- HR008661
- HOTRODS 8661
- PROX 03.3405
- PSYCHIC MX-09016
- 12161-35G00-0B0 / 12161-35G01-0B0
- WOSSNER P4012
- WISECO
- HOTRODS 8647
