CONNECTING ROD YFM450 GRIZZLY, BRONCO AT-09249 KODIAK RHINO
Bronco Heavy-Duty Connecting Rod Rebuild Kit - AT-09249. This heavy-duty connecting rod rebuild kit is an OE replacement manufactured from certified SNCM220 chrome alloy steel and case-hardened for durability. Crankpins are made from hot-rolled ASTM steel and case-hardened. It utilizes advanced caged needle roller bearing designs for high RPM durability. Thrust washers are silver-coated bronze phosphor. The complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers. Compatible with aftermarket and OE crankshafts. Specifications: Material: SNCM220 (Certified Chrome Alloy Steel) Dimensions: Centre to Centre: 121.50 mm Small End Bore Ø: 20 mm Small End Width: 22 mm Big End Bearing: 35x43x22 mm Big End Bore Ø: 43 mm Big End Width: 22 mm Big End Pin Ø: 35 mm Big End Pin Length: 62.00 mm Washer Thickness: 35x54x1 mm Cross-Reference OEM Part Numbers: YAMAHA: 5GH-11651-01-00, 5GH-11651-01, 5GH-11681-00, 90201 HOTRODS: 8703 Part Number: 56-9014.BR
- SKU
- 56-9014.BR
- Brand
- Namura Technologies
- Availability
- In Stock (3)
FULL DESCRIPTION

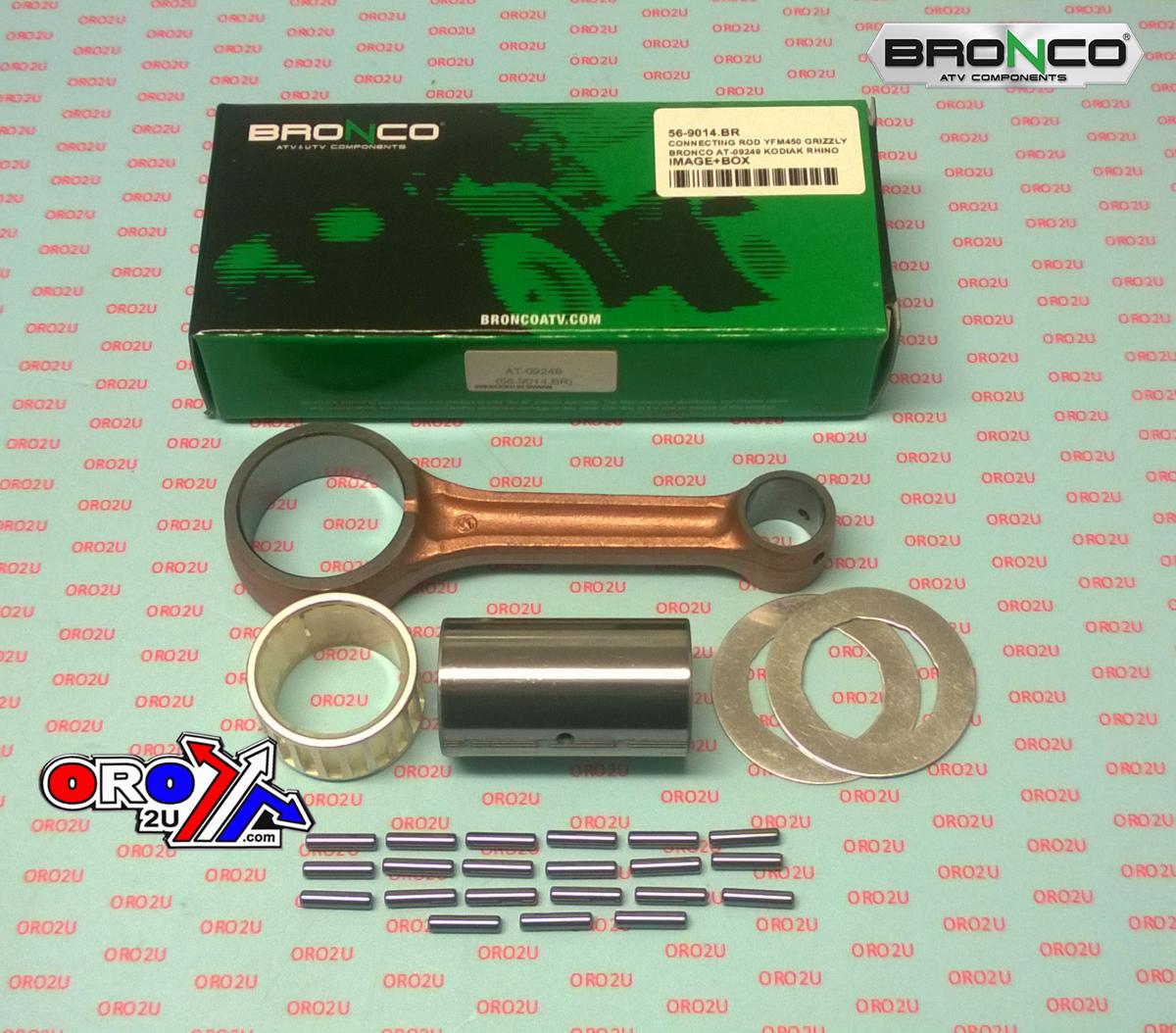

Bronco Heavy-Duty Connecting Rod Rebuild Kit
This heavy-duty connecting rod rebuild kit is a robust OE replacement designed for strength and longevity. Manufactured from certified chrome alloy steel (SNCM220) and case-hardened for durability, it includes all necessary components for a complete rebuild. It is fully compatible with both aftermarket and OE crankshafts.
Key Features:
- Made from certified chrome alloy steel for superior strength.
- Crankpins manufactured from hot-rolled ASTM steel and case-hardened.
- Utilizes advanced caged needle roller bearing designs for high RPM durability.
- Thrust washers are silver-coated bronze phosphor for added durability.
- Complete kit includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers (if needed).
- Fully compatible with OE and aftermarket crankshafts.
Specifications:
- Material: SNCM220 (Certified Chrome Alloy Steel)
- Centre to Centre: 121.50 mm
- Small End Bore Diameter: 20 mm
- Small End Width: 22 mm
- Big End Bearing Dimensions: 35x43x22 mm
- Big End Bore Diameter: 43 mm
- Big End Width: 22 mm
- Big End Pin Diameter: 35 mm
- Big End Pin Length: 62.00 mm
- Washer Dimensions: 35x54x1 mm
